RX 300 FWD V6-3.0L (1MZ-FE) (1999)
/Page-2415001.png)

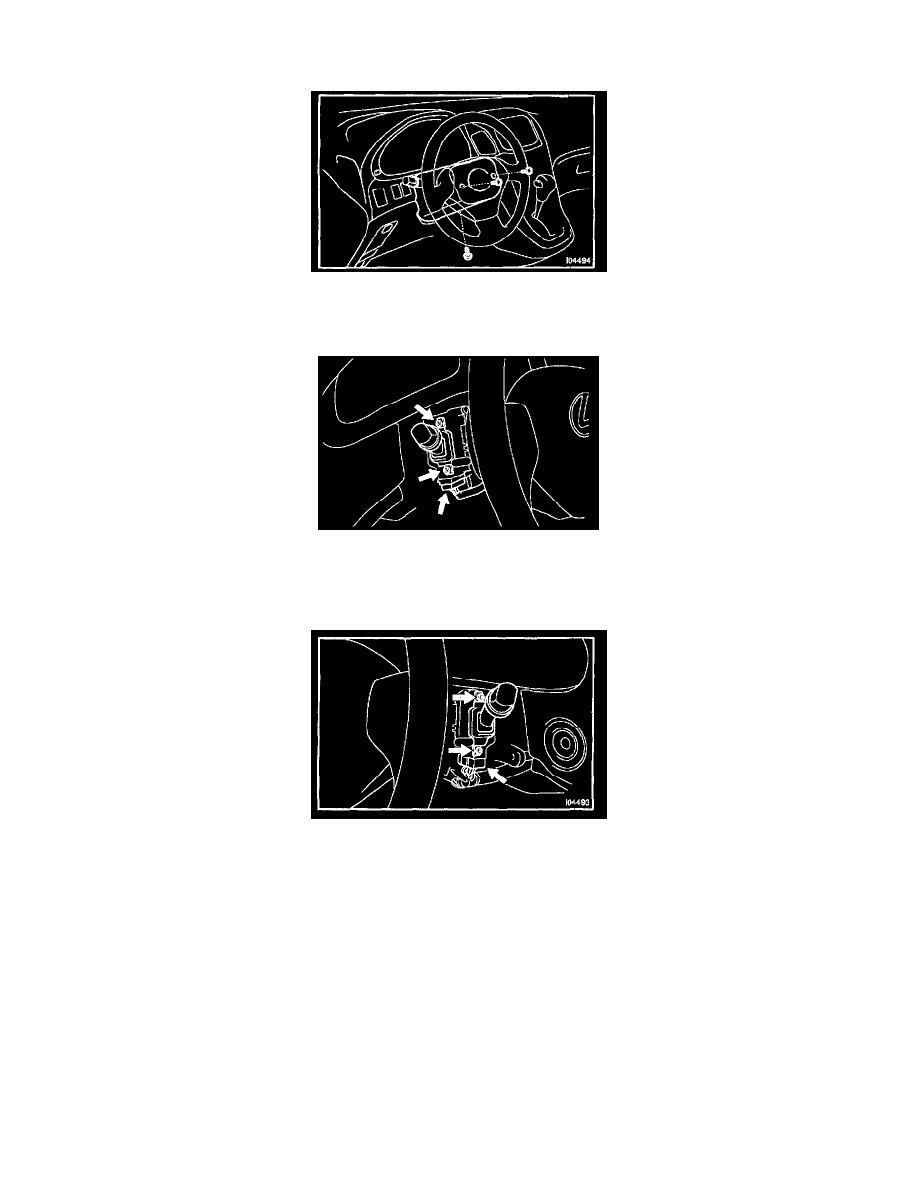

Headlamp Switch: Service and Repair
REMOVAL
1. REMOVE COLUMN COVER
a. Remove the 3 screws.
b. Remove the column cover.
2. REMOVE LIGHT CONTROL SWITCH
a. Disconnect the light control switch connector.
b. Remove the 2 screws.
c. Remove the switch.
3. REMOVE WIPER AND WASHER SWITCH
a. Disconnect the wiper and washer switch connector.
b. Remove the 2 screws.
c. Remove the switch.
INSTALLATION
Installation is in the revers order of removal
