Continental V8-4.6L DOHC VIN V (1998)
Headlamp Dimmer Switch: Description and Operation
^
The panel dim switch is part of the Lighting Control Module (LCM). The panel dim switch operates only with the parking lamps or headlamps in
ON position.
^
When the panel dim switch is held in the up position, the instrument panel lighting will progressively brighten.
^
When the panel dim switch is held in the down position, the instrument panel lighting will progressively dim.
The steering column switches consist of the:
-
Multi-function.
+
Turn signal.
+
Hazard warning.
+
Windshield wiper/washer.
+
Headlamp dimmer/flash-to-pass.
-
Ignition.

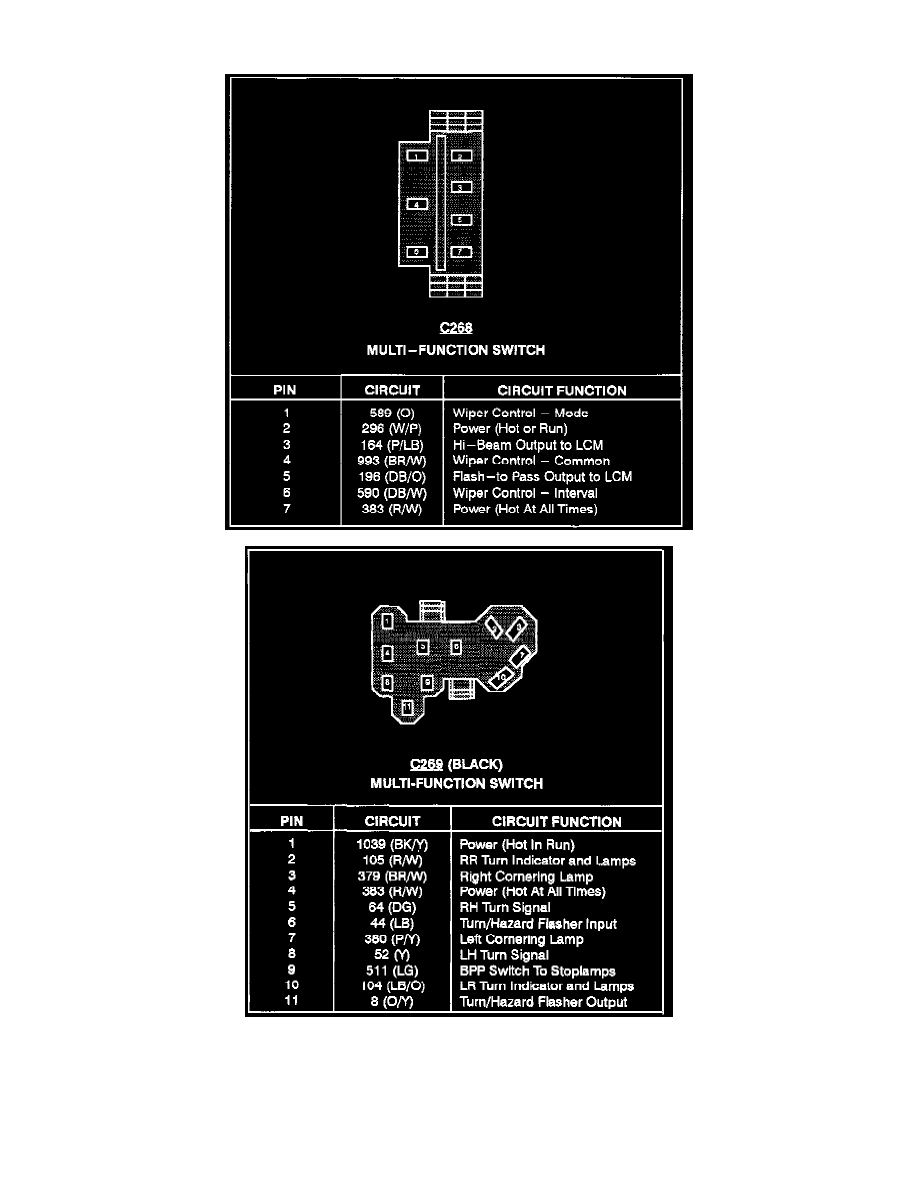

The integrated multi-function switch is mounted to the LH side of the steering column and controls the turn signal, headlamp dimmer/flash-to-pass.
windshield wiper/washer and hazard warning.
The ignition switch is mounted below the steering column and is activated by rotating the ignition switch lock cylinder on the steering column.
