MKT FWD V6-3.7L (2010)
14. Remove the pin-type retainer, slide up at the rear to release the tab and remove the recliner inner cover.
15. WARNING: Use care when the seat back frame is removed and when releasing the recliners from a backrest upright position. The
recliners are spring-loaded, which may cause the recliner upper arms to fold with significant speed/force. Failure to follow this
instruction may result in serious personal injury.
NOTE: Note all cable routing and orientation for correct installation.

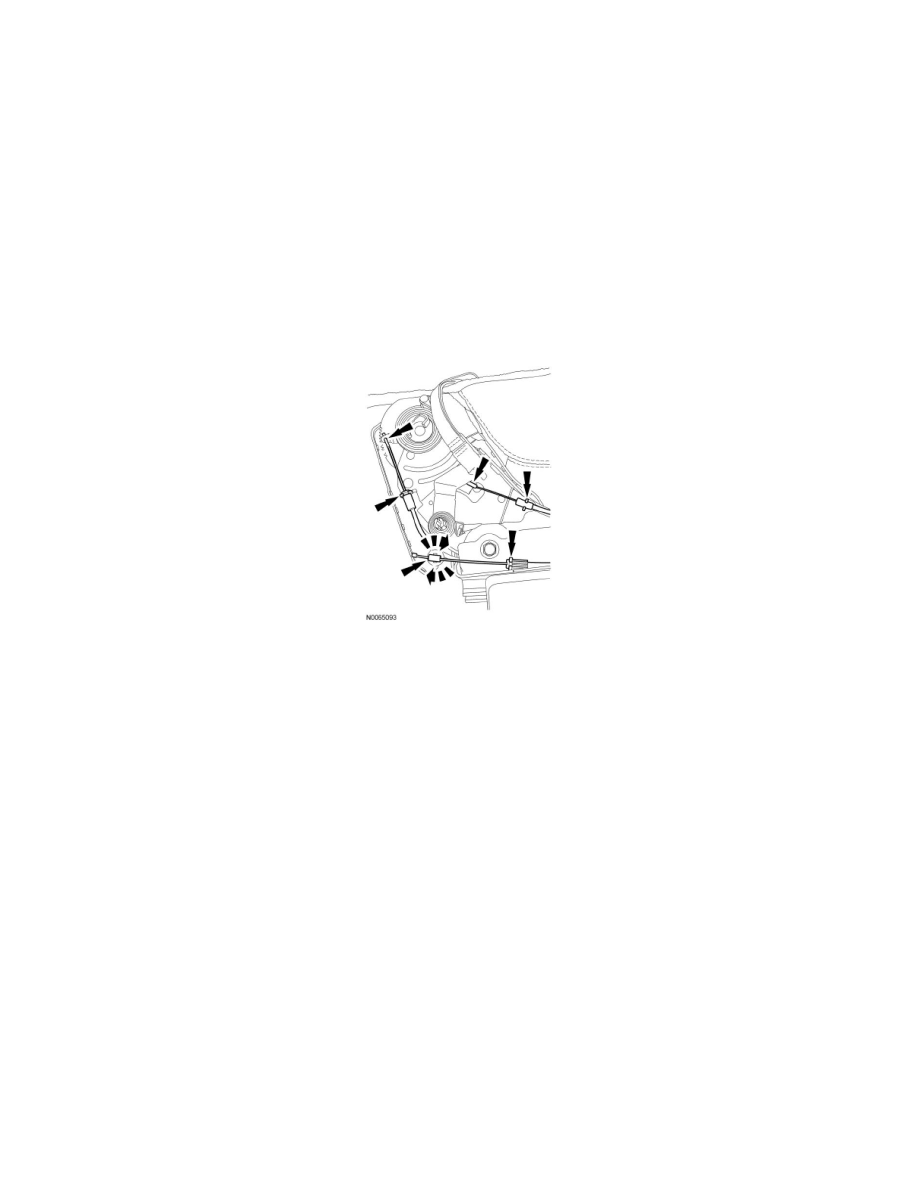

With the recliner in the released (folded) position, detach the 3 cables.
-
Disconnect the power-fold seat motor cable from the recliner.
-
Rotate the cable end guide to release.
-
Disconnect the cable jacket from the cable clamp.
-
Detach the inboard and outboard latch cable jackets from the retainers.
-
Unhook the inboard and outboard latch cable ends.
16. Remove the 2 bolts and recliner.
-
To install, tighten to 50 Nm (37 lb-ft).
17. Disconnect the electrical connector, remove 2 screws and power fold motor.
18. Disconnect the electrical connectors, remove the screw and heated seat module.
19. Remove the 6 cushion frame-to-riser nuts and remove the riser.
-
To install, tighten to 23 Nm (17 lb-ft).
20. Remove the bolt and safety belt buckle.
-
To install, tighten to 40 Nm (30 lb-ft).
21. Remove the screw, release the retainer and the inboard pivot cover.
22. Remove the pivot grommet.
23. Remove the 2 screws, pull and remove the riser inboard inner cover.
24. Remove the 3 screws and riser inboard outer cover.
25. Remove the cushion cover from the cushion foam pad.
26. To assemble, reverse the disassembly procedure.
