MKZ AWD V6-3.5L (2008)
Air Bag Deactivation Indicator: Service and Repair
PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR
NOTE:
-
Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic
procedure again.
-
The supplemental restraint system (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
-

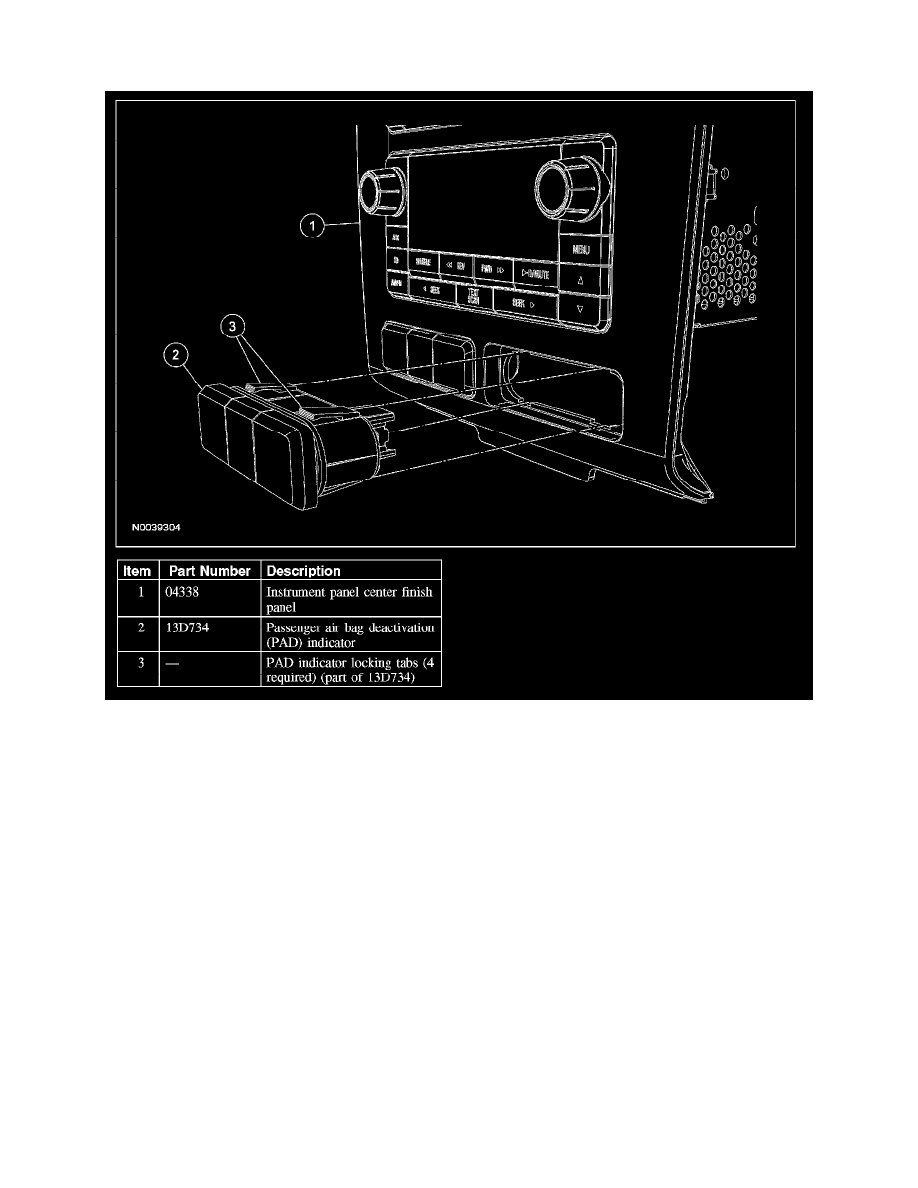

The passenger air bag deactivation (PAD) indicator is part of the hazard switch/traction control switch assembly.
1. Depower the SRS.
2. Remove the instrument panel center finish panel.
3. Release the 4 locking tabs (2 upper and 2 lower) on the PAD indicator and remove it from the instrument panel center finish panel.
4. To install, reverse the removal procedure.
5. Repower the SRS.
