Navigator 4WD V8-5.4L (2010)
Suspension Control Module: Service and Repair
Vehicle Dynamics Module (VDM)
Removal and Installation
NOTICE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

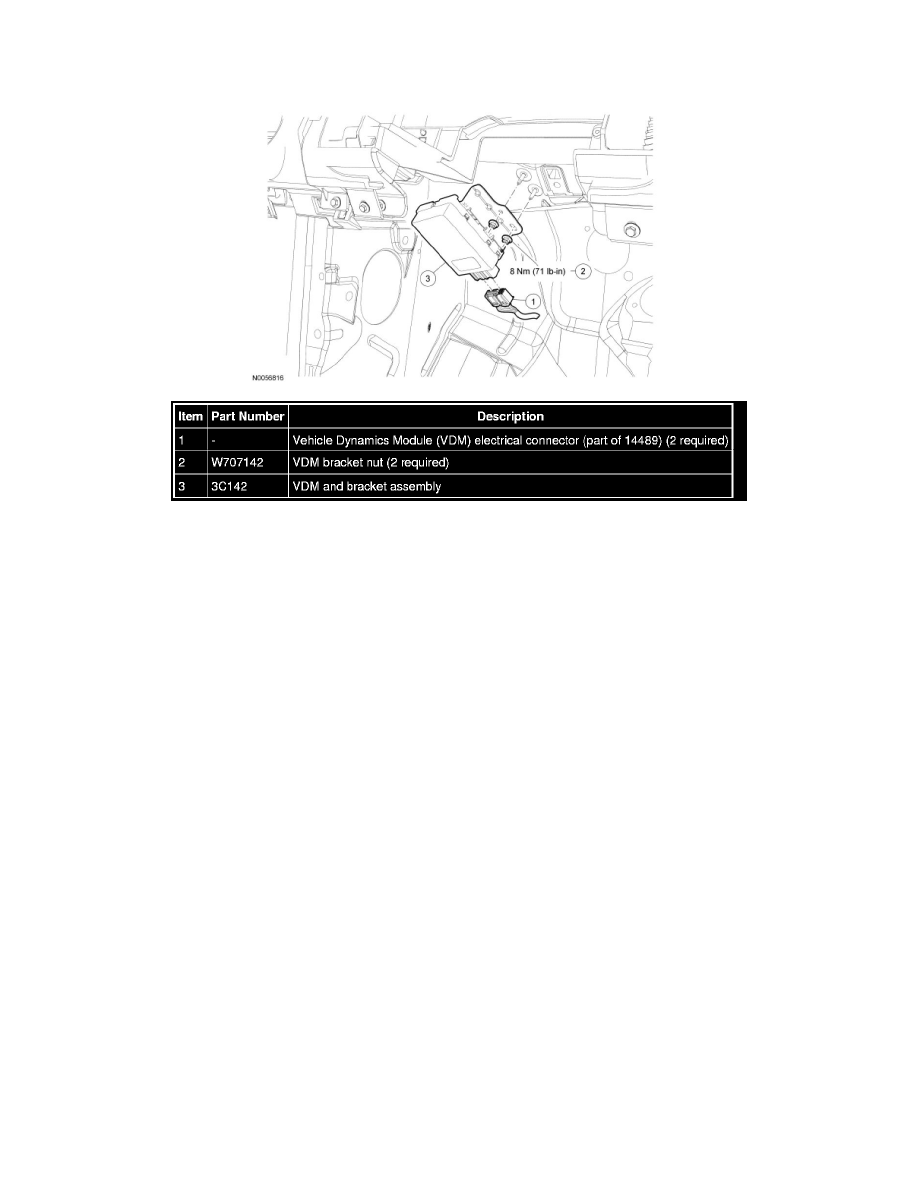

1. NOTE: The Vehicle Dynamics Module (VDM) is mounted to the lower left side of the dash above the parking brake control.
Disconnect the 2 VDM electrical connectors.
2. Remove the VDM bracket nuts and the module.
-
To install, tighten to 8 Nm (71 lb-in).
3. NOTE: The VDM is calibrated with information from the ride height sensors. A new or exchanged VDM requires that the LH and RH ride height
sensors are calibrated and a Pneumatic Test is carried out. For additional information, refer to Vehicle Dynamic Suspension Calibration Initialize
System - Clear C1990 and C1991 DTCs.
To install, reverse the removal procedure.
