Page 17
background image

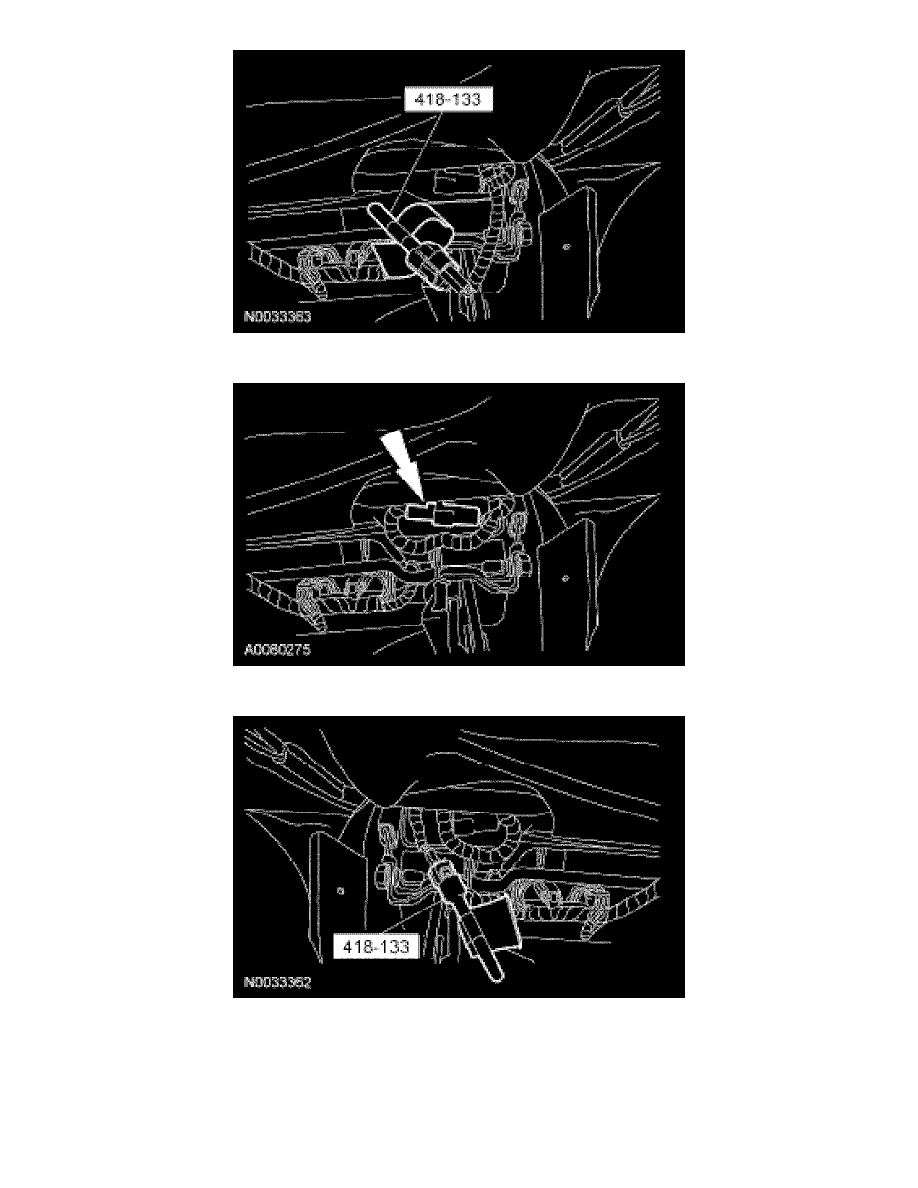

3. Remove the restraint system diagnostic tool from the driver seat side air bag electrical connector.

4. Connect the driver seat side air bag module electrical connector, located at the lower rear of the seat cushion pan.

5. Remove the restraint system diagnostic tool from the passenger seat side air bag electrical connector.
