Town Car V8-4.6L VIN V Flex Fuel (2006)
-

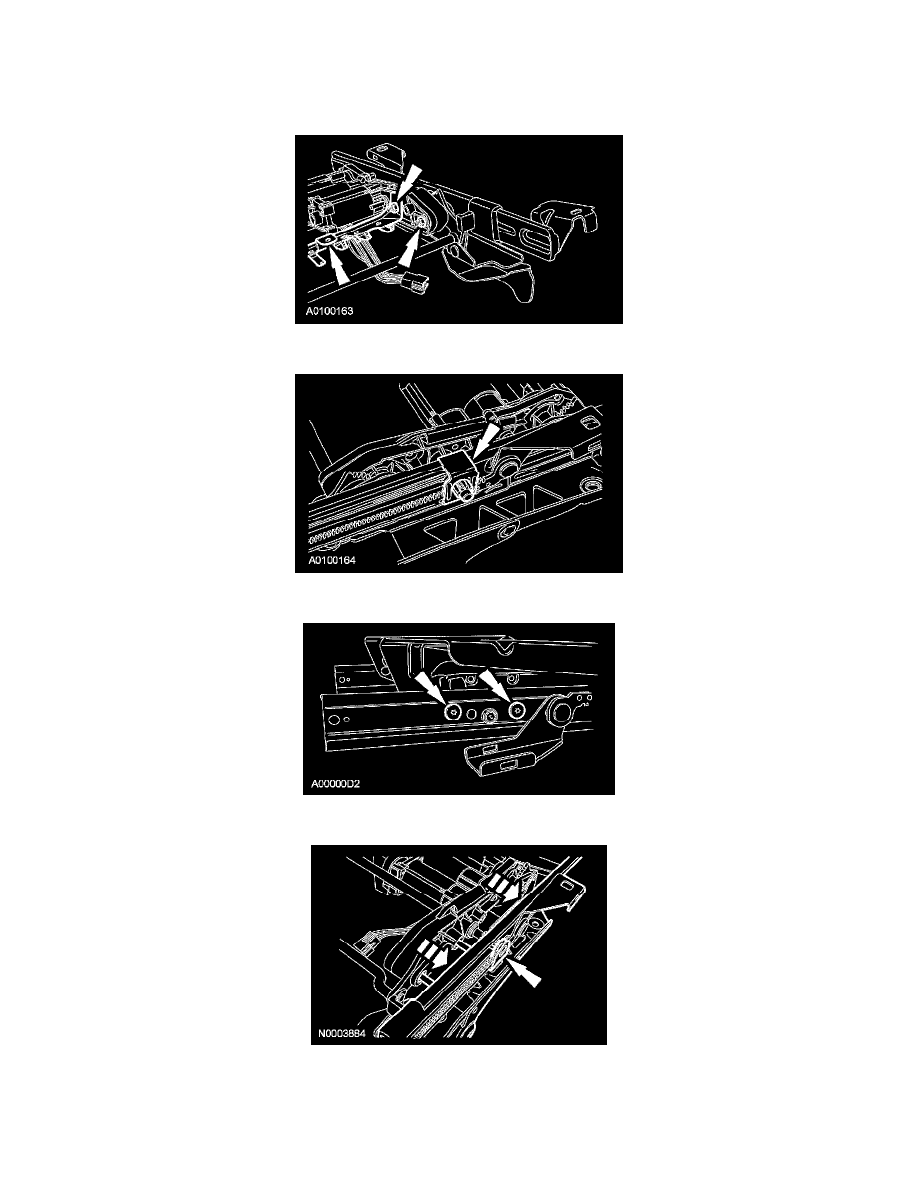

The drive tube is press-fit to stub shafts on each end. A hammer may be necessary to separate the drive tube.
-
The drive tube must be clamped at the inboard track gear stub shaft to allow the drive tube to separate at the seat track motor gear stub shaft.
Clamp the locking pliers on the flats of the drive tube where it reaches over the inboard track gear stub shaft. Tap on the locking pliers, separate
the drive tube from the seat track motor assembly stub shaft and remove the inboard track and drive tube.
13. Remove the 2 seat track motor assembly-to-seat track nuts and the bracket (if equipped).
14. Remove the outboard retainer clip.
15. Remove the 2 seat track motor assembly-to-seat track bolts.
16. NOTE: The pinion cage will be removed with the outboard track.
Carefully pry between the seat track motor assembly and the outboard track and remove the outboard track.
