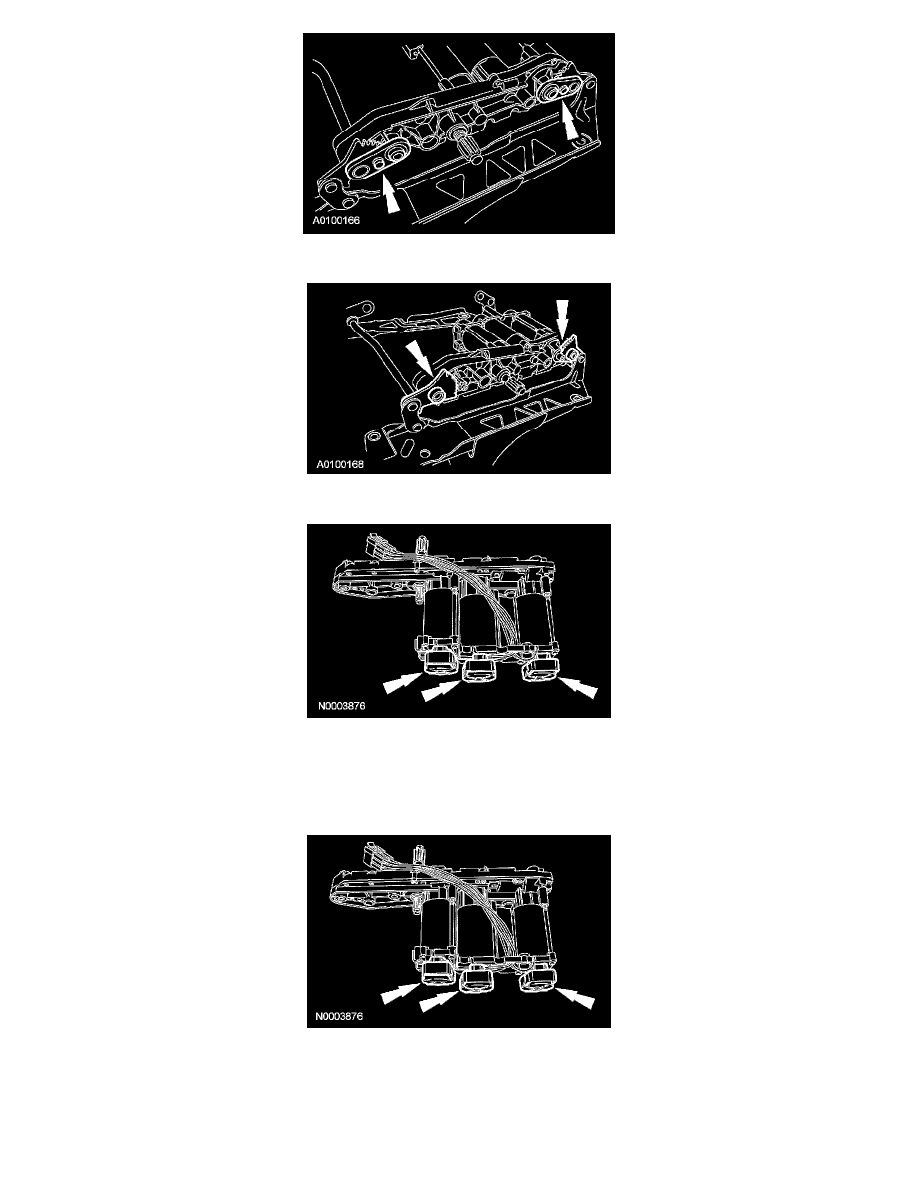

17. Carefully pry and remove the 2 support straps.

18. Pry and remove the seat track motor assembly from the upper support assembly.

19. NOTE:  The memory position sensors are interchangeable.

If equipped, rotate each memory seat position sensor counterclockwise and remove the 3 sensors.

Installation

1. NOTE:  The memory position sensors are interchangeable.

If equipped, position each of the 3 seat position sensor and rotate clockwise to install.
