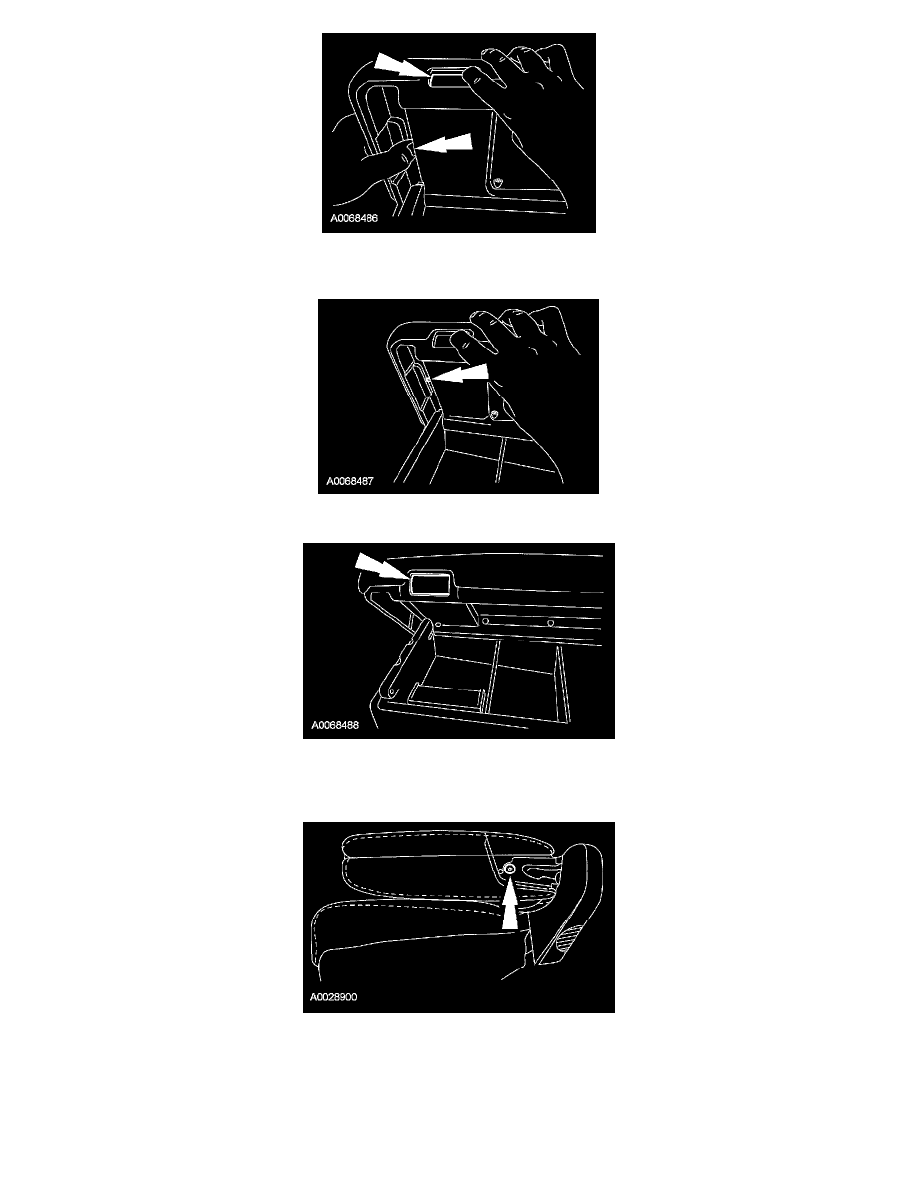

9. Press the check lever. While holding down the check lever, press the driver side latch button. When the seat armrest lid is engaged, a "pop" noise

will be heard and the driver side button will depress.

10. Release the check lever.

11. Release the driver side latch button.
12. Drop the seat armrest lid from a 45 degree angle so that the lid closes securely.
13. Open and close the seat armrest lid 3 times from each side to make sure the lid is correctly retained.

14. Install the armrest and 2 pivot screws.
