Town Car V8-4.6L VIN V Flex Fuel (2006)
4. Pull the parking brake adjuster clip downward.
5. Apply the parking brake control fully.
6. Push up on the parking brake adjuster clip to lock the adjuster.
7. Using the parking brake release handle, release the parking brake control.
8. Disconnect the front parking brake cable and conduit from the LH parking brake rear cable and conduit at the cable connector.
9. Press the retaining tabs, and remove the front parking brake cable and conduit retainer from the bracket.

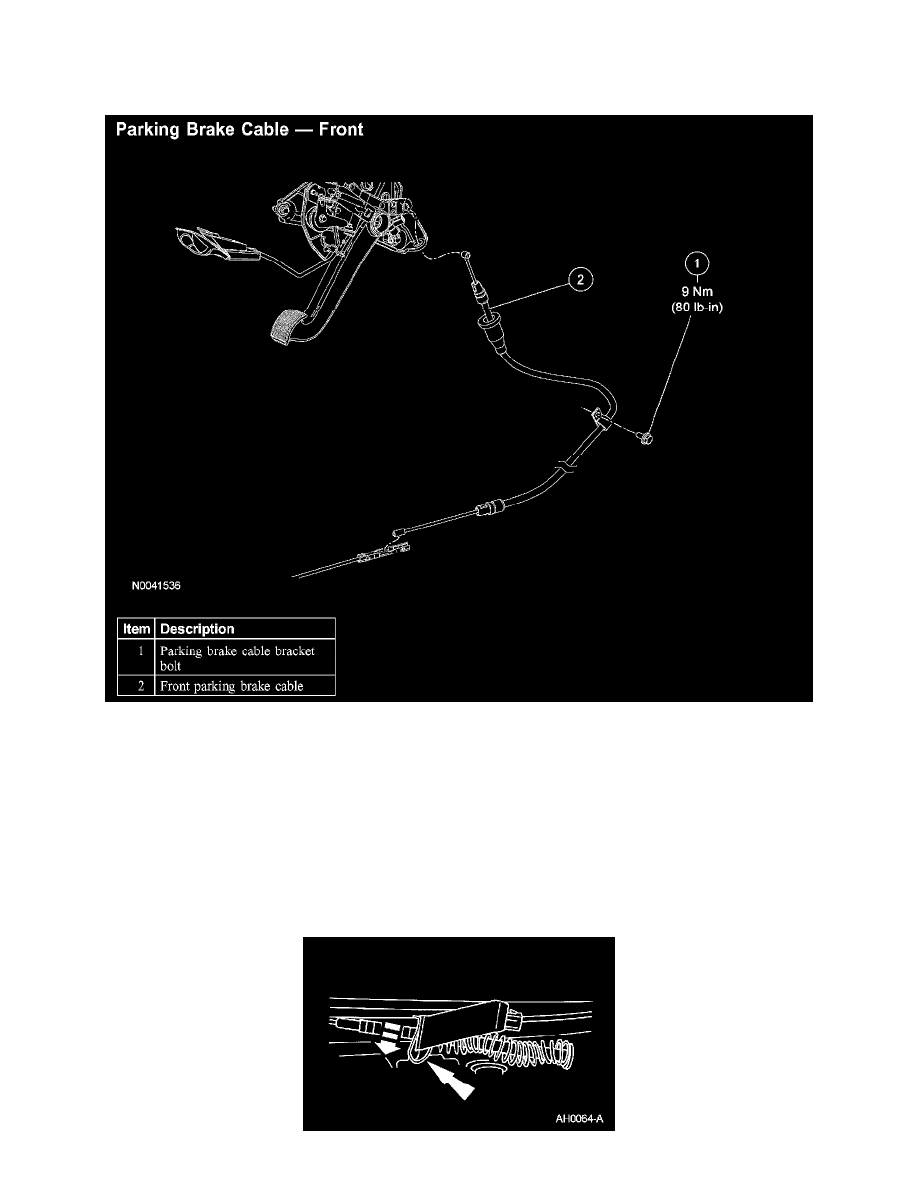

10. Remove the parking brake cable bracket bolt and the bracket.
^
To install, tighten to 9 Nm (80 in. lbs.).
11. Disconnect the front parking brake cable and conduit from the parking brake control.
12. Push the front parking brake cable and conduit down, and remove the front parking brake cable and conduit.
13. To install, reverse the removal procedure.
^
Adjust the parking brake cable tension. For additional information, refer to Parking Brake Cable Adjustment.
