Town Car V8-4.6L VIN V Flex Fuel (2006)
Removal and Installation

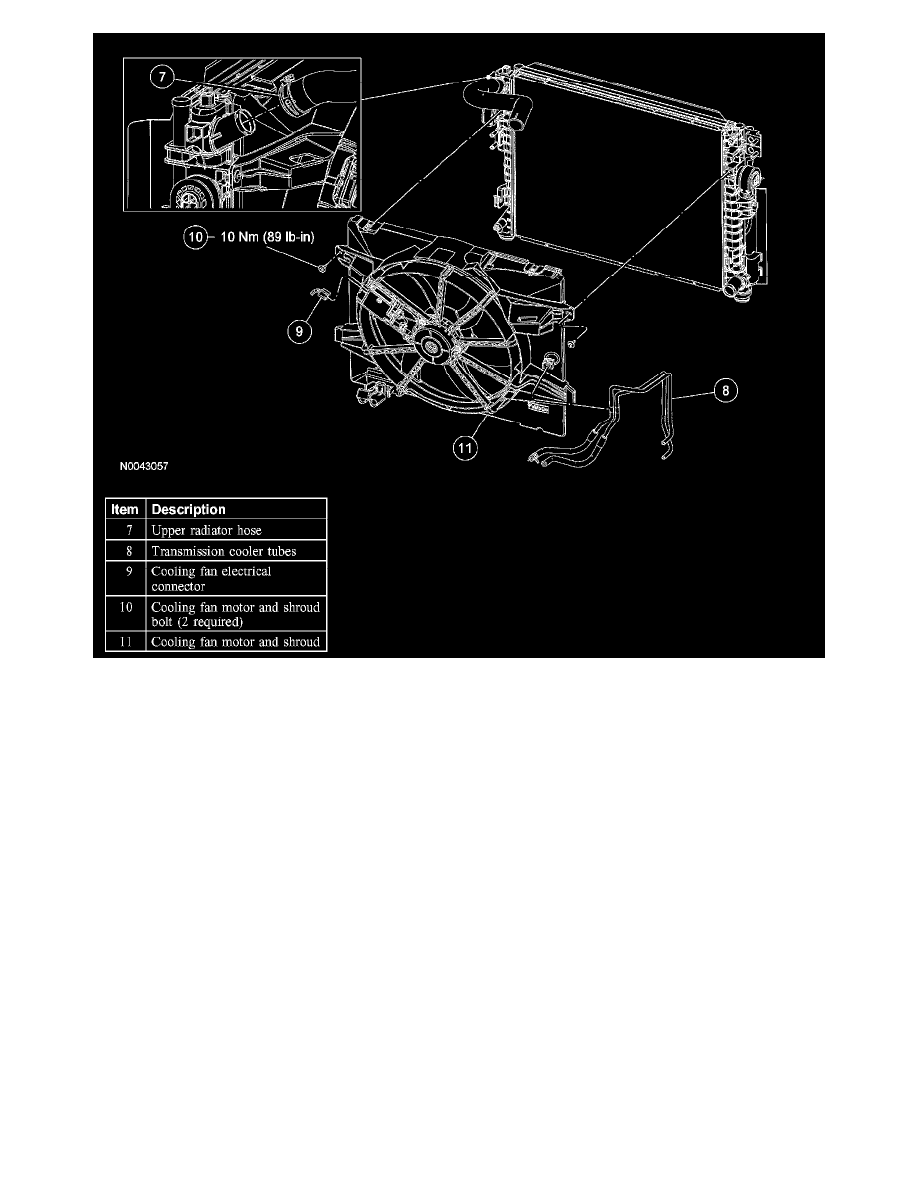

1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Drain the cooling system.
3. Remove the bolt and position aside the power steering reservoir.
^
To install, tighten to 10 Nm (89 inch lbs.).
4. Disconnect the degas bottle overflow hose, supply hose and position aside.
5. Remove the bolt and the degas bottle.
^
To install, tighten to 10 Nm (89 inch lbs.).
6. Disconnect the upper radiator hose and position aside.
7. Detach the transmission cooler tubes from the cooling fan motor and shroud.
8. Disconnect the cooling fan motor and shroud electrical connector.
9. NOTE: Position the lower radiator hose away from the cooling fan motor and shroud.
Remove the 2 bolts and the cooling fan motor and shroud assembly.
^
To install, tighten to 10 Nm (89 inch lbs.).
10. To install, reverse the removal procedure.
11. Fill and bleed the cooling system.
