Town Car V8-4.6L VIN V Flex Fuel (2006)
Engine Block Heater: Service and Repair

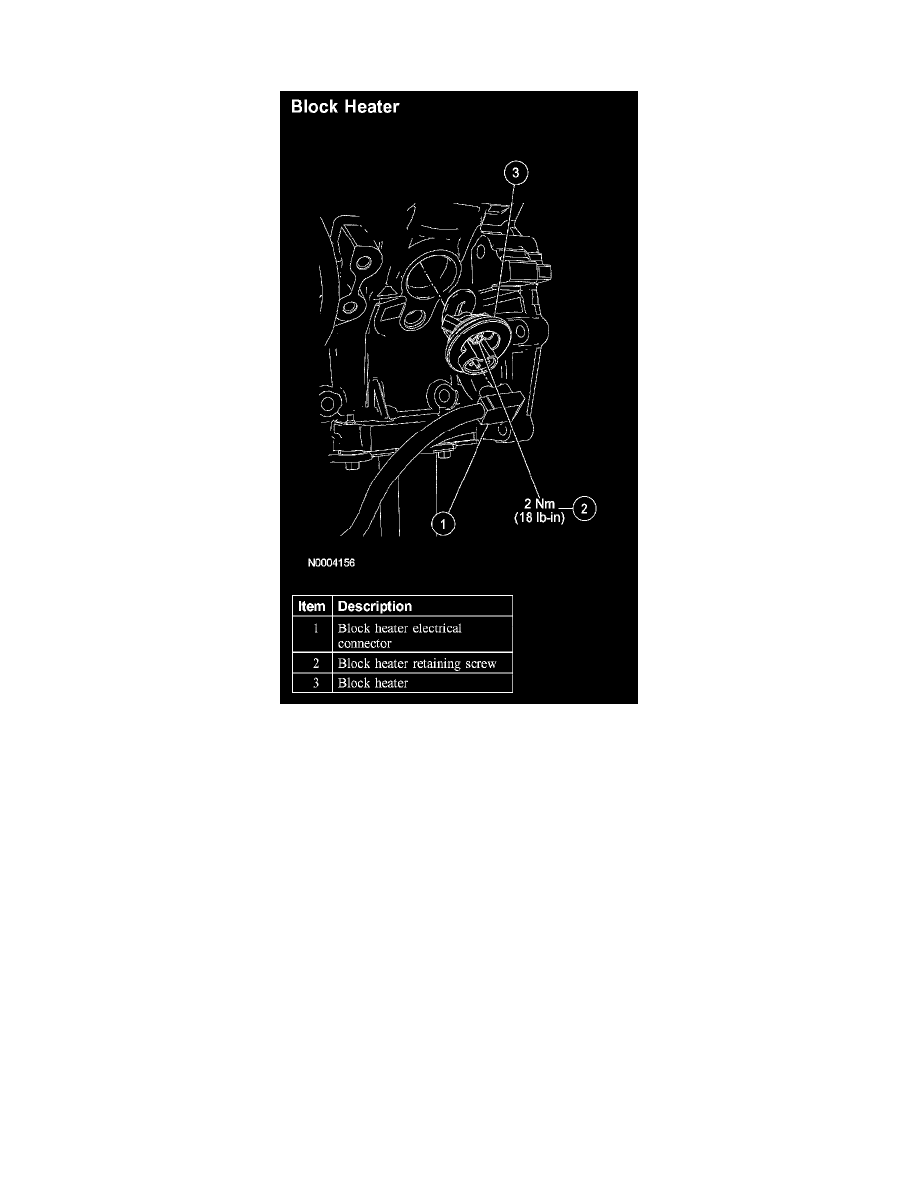

Block Heater
Block Heater
Removal and Installation
1. With vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Drain the cooling system.
3. Disconnect the block heater electrical connector and position aside.
4. CAUTION: Do not loosen the block heater retaining screw more than necessary for removal.
Loosen the block heater retaining screw and remove the block heater.
^
To install, tighten to 2 Nm (18 inch lbs.).
5. CAUTION: Make sure the block heater electrical connector is routed and secured away from rotating or hot components, or damage to the cable
can occur.
To install, reverse the removal procedure.
6. Fill and bleed the cooling system.
