Intake Manifold|Specifications|Page 2652 > < Intake Manifold|Specifications|Page 2650
Page 3
background image

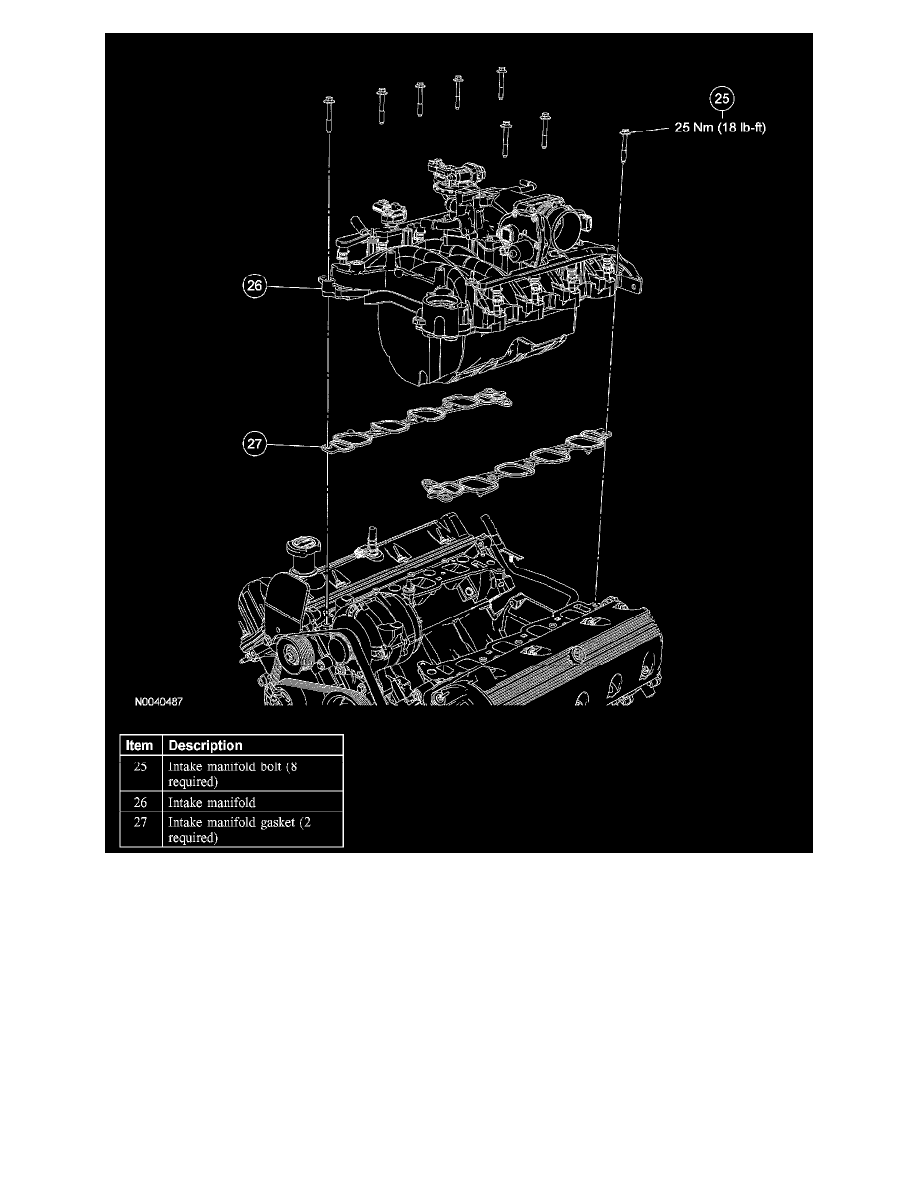

Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Disconnect the fuel tube spring lock coupling. For additional information, refer to Fuel Delivery and Air Induction.
3. Disconnect the battery ground cable. For additional information, refer to Battery.
4. Drain the engine cooling system. For additional information, refer to Cooling System.
5. Remove the air cleaner and outlet pipe. For additional information, refer to Fuel Delivery and Air Induction.
6. Remove the wiper mounting arm and pivot shaft. For additional information, refer to Wiper and Washer Systems.
