Town Car V8-4.6L VIN V Flex Fuel (2006)
Engine Control Module: Service and Repair
Powertrain Control Module

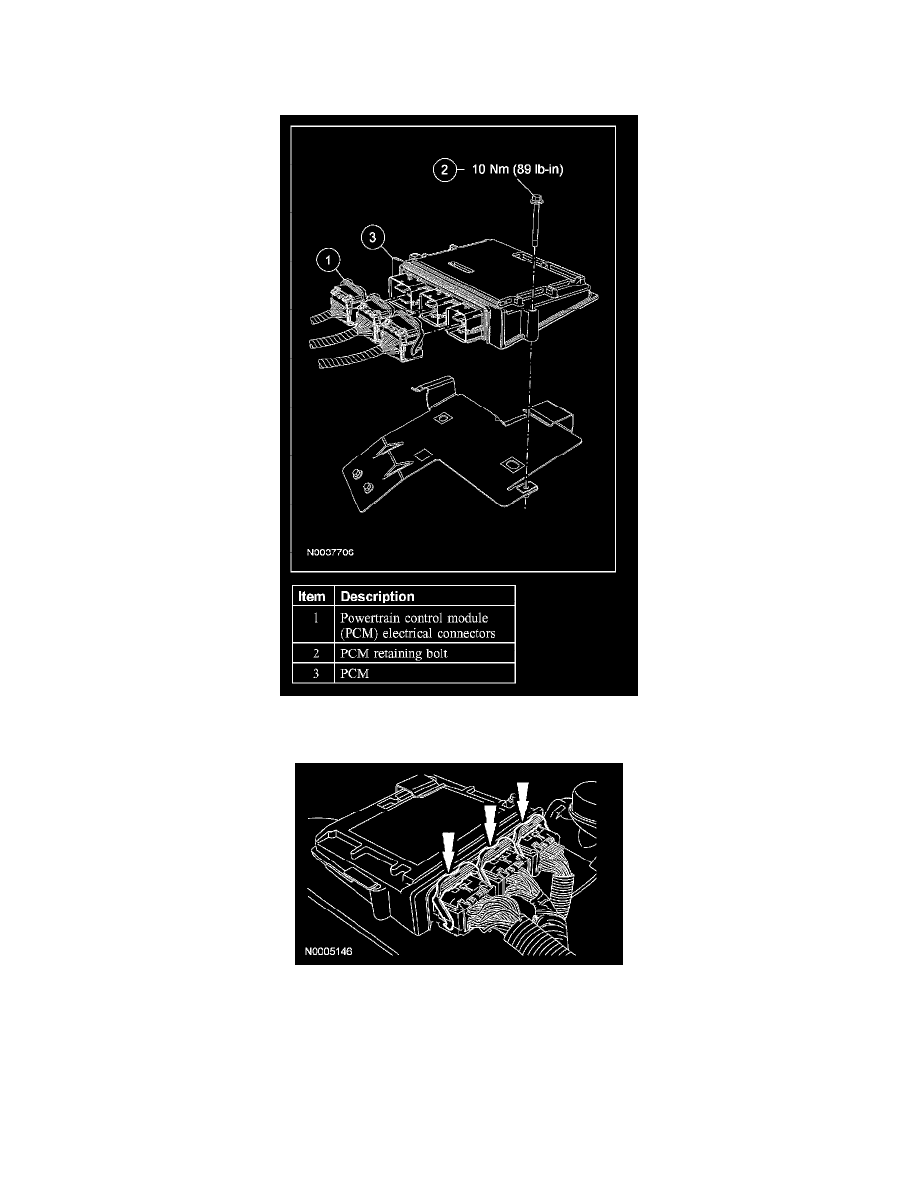

POWERTRAIN CONTROL MODULE (PCM)
Removal and Installation
1. Disconnect the battery ground cable.
2. Release the clips and disconnect the 3 powertrain control module (PCM) electrical connectors.
3. Remove the PCM retaining bolt.
-
To install, tighten to 10 Nm (89 lb-in).
4. Remove the PCM from the mounting bracket.
5. To install, reverse the removal procedure.
