Town Car V8-4.6L VIN V Flex Fuel (2006)
-
The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate
a supplemental restraint system (SRS) fault.
-
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
-
Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic
procedure again.
-

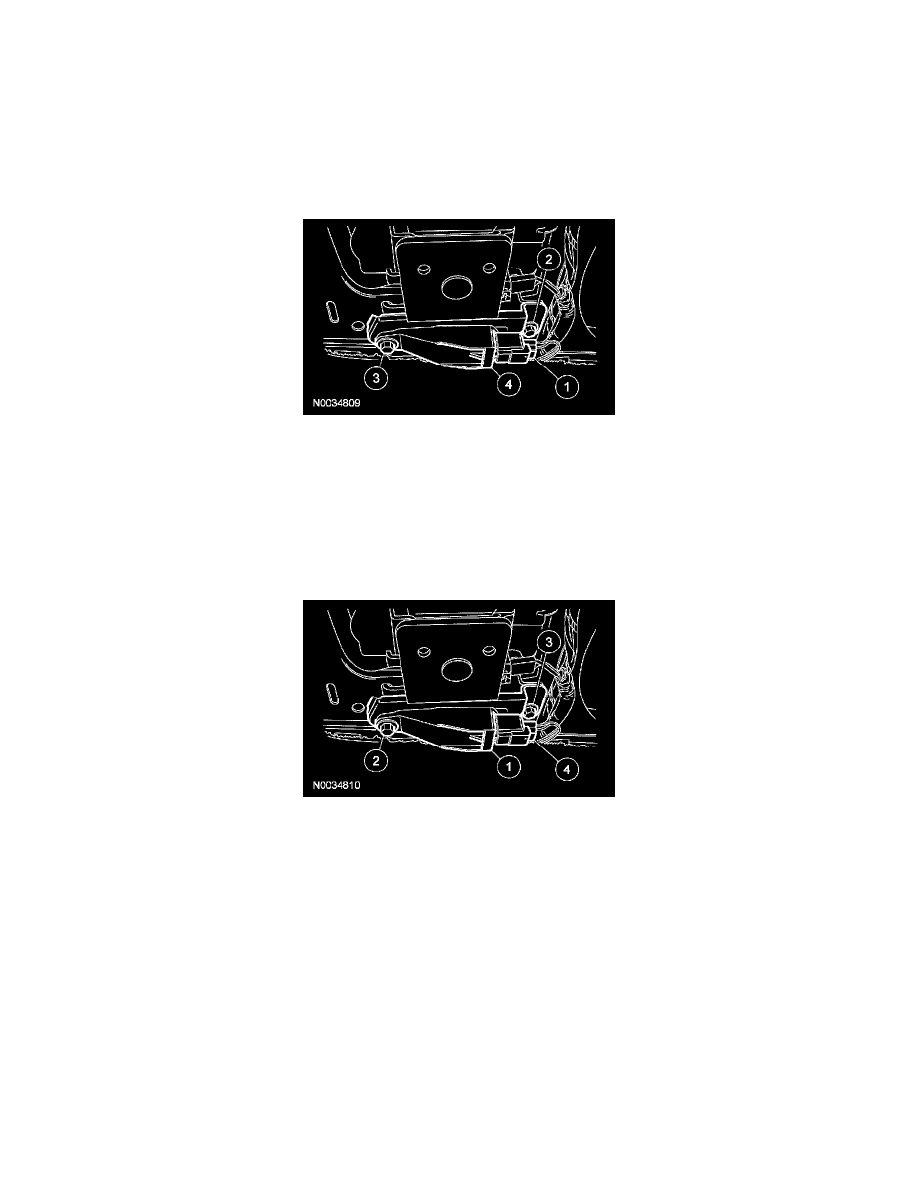

LH side shown, RH side similar.
-
For this procedure, the side impact sensors are located at the base of each B-pillar.
1. Depower the system.
2. Pull out to release the retaining clips and remove the lower B-pillar trim panel.
3. NOTE: The side impact sensor bolts must be removed in the sequence shown.
Remove the side impact sensor with bracket.
1
Disconnect the electrical connector.
2
Remove the bolt.
3
Remove the bolt.
4
Remove the side impact sensor with bracket.
Installation
1. WARNING: The tightening torque of the air bag side impact sensor retaining bolts is critical for correct system operation.
NOTE: The side impact sensor bolts must be installed in the sequence shown.
Install the side impact sensor with bracket.
1
Position the side impact sensor with bracket.
2
Install the bolt.
-
Tighten to 12 Nm (9 lb-ft).
3
Install the bolt.
-
Tighten to 12 Nm (9 lb-ft).
4
Connect the electrical connector.
2. Align the lower B-pillar lower trim panel and push in, seating the retaining clips.
3. Repower the system.
