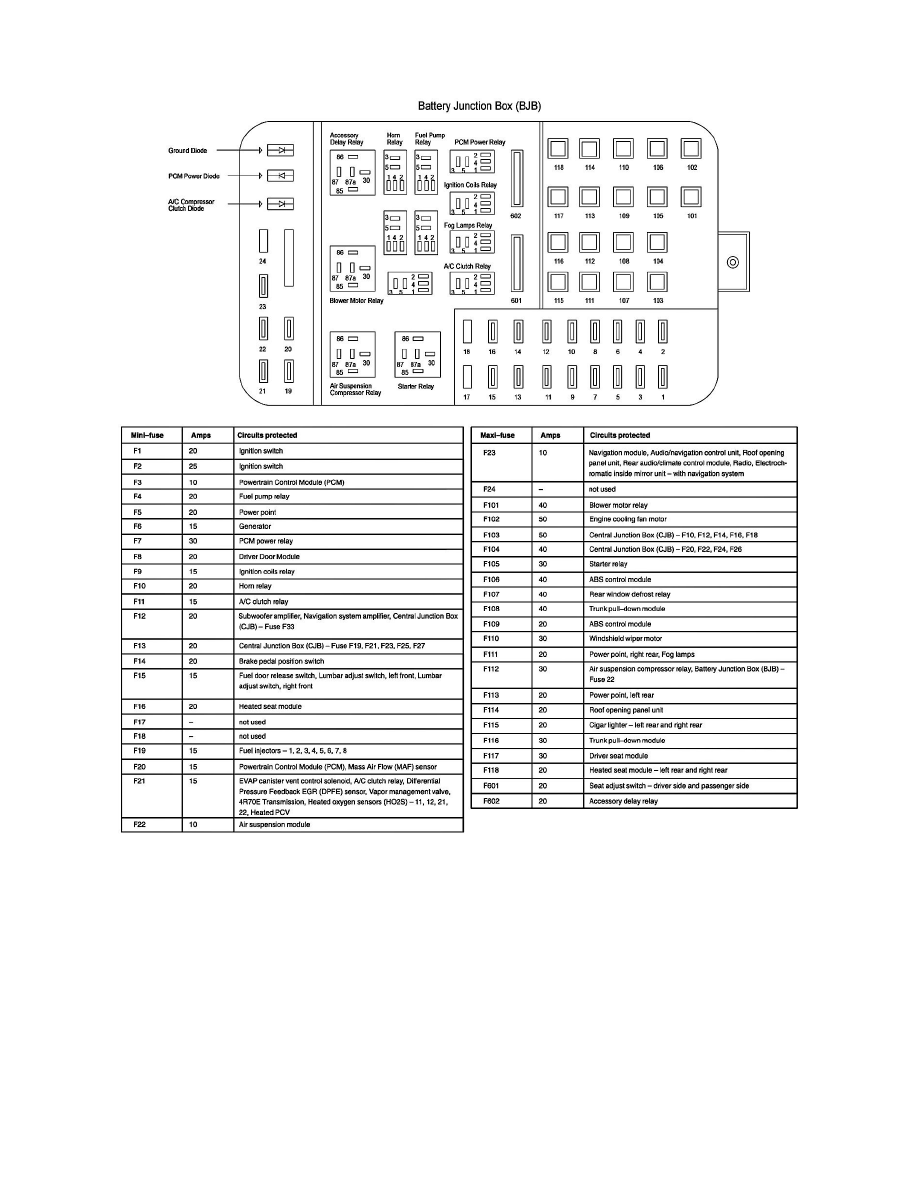

Fuse Block: Locations
Battery Junction Box

Note: The battery junction box is located in the engine compartment.
