Town Car V8-4.6L VIN V Flex Fuel (2006)
Ignition Lock: Service and Repair
Ignition Lock Cylinder - Non Functional
IGNITION LOCK CYLINDER - NON FUNCTIONAL
Removal and Installation
1. Disconnect the battery.
2. Remove the tilt wheel handle and shank.

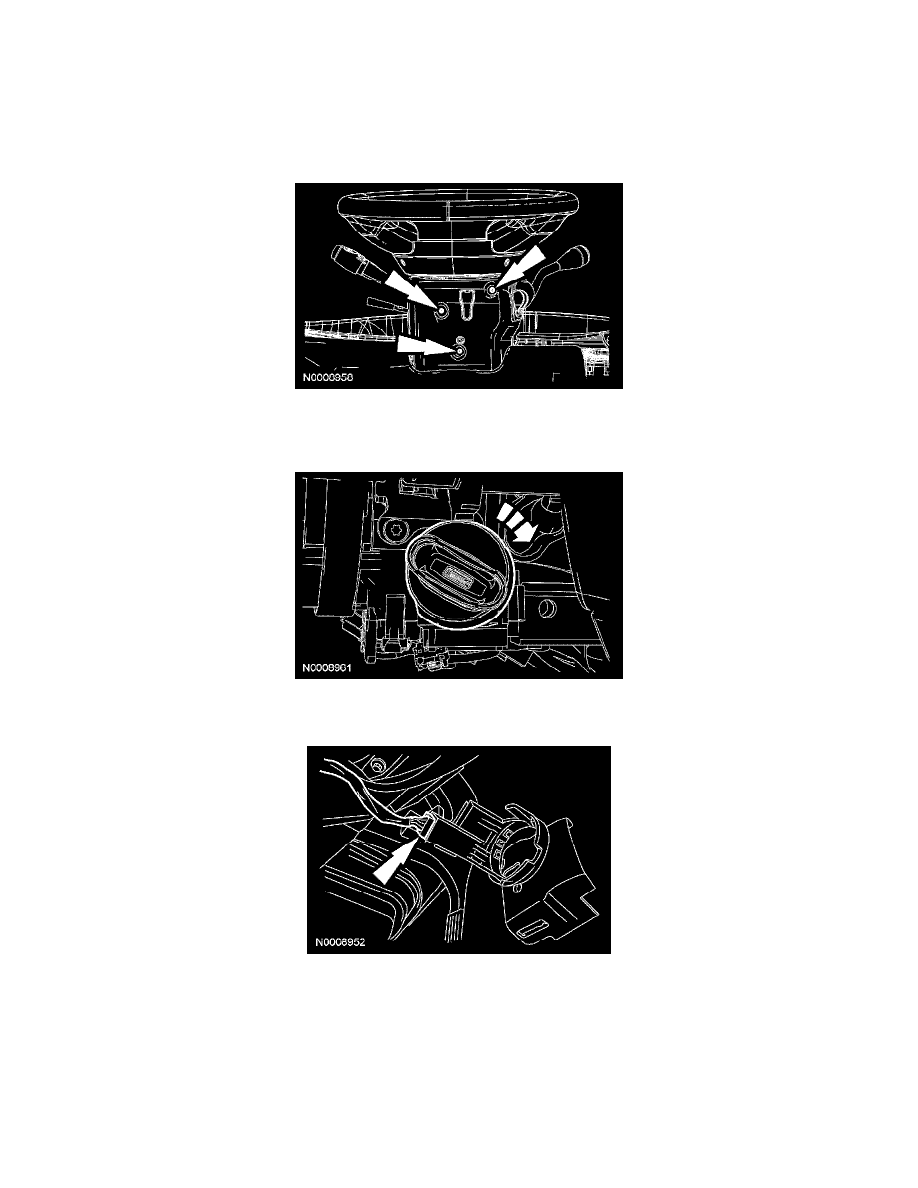

3. Remove the 3 screws and the lower steering column shroud.
4. Remove the steering wheel.
5. Position the shift selector boot aside.
6. Twist off the cap from the ignition switch lock cylinder.
7. Release the tabs and slide the passive anti-theft system (PATS) transceiver off the steering column.
8. Disconnect the electrical connector and remove the PATS transceiver.
