Town Car V8-4.6L VIN V Flex Fuel (2006)
Ride Height Sensor: Service and Repair

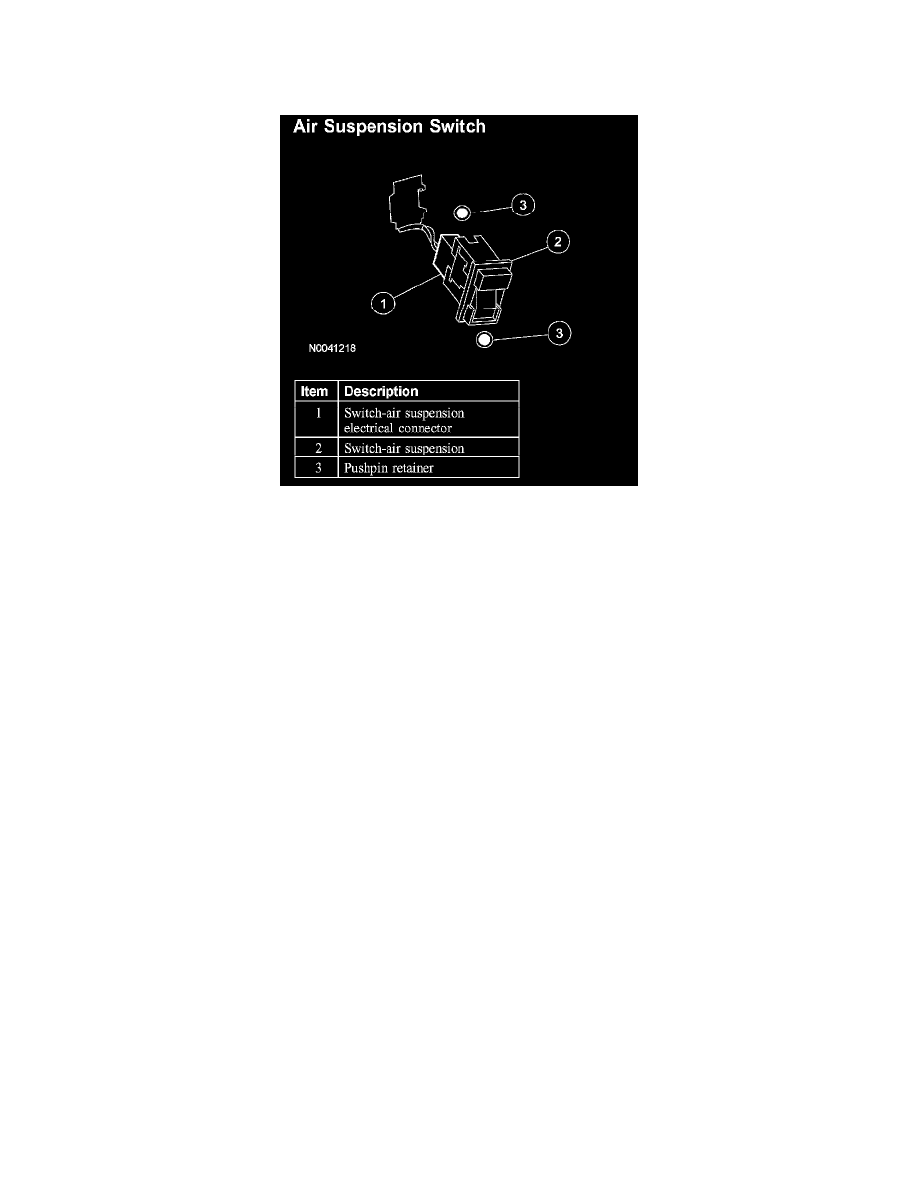

Air Suspension Switch
Air Suspension Switch
Air Suspension Switch
Removal and Installation
WARNING: Before carrying out maintenance on any air suspension components, disconnect the power to the system by turning of the air
suspension switch located on the LH side of the luggage compartment to prevent vehicle damage or personal injury. Failure to follow these
instructions may result in personal injury.
CAUTION: Suspension fasteners are critical parts because they effect performance of vital components and systems and their failure can result in
major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of
lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
1. Turn the air suspension service switch to the OFF position.
2. Disconnect the battery ground cable.
3. Peel back the luggage compartment trim.
1
Remove the pushpins.
2
Peel back the luggage compartment trim.
4. Remove the air suspension switch.
1
From behind the quarter panel reinforcement, depress the clips.
2
Remove the air suspension switch.
5. Disconnect the air suspension switch electrical connector.
6. To install, reverse the removal procedure.
