Town Car V8-4.6L VIN V Flex Fuel (2006)
Accumulator: Service and Repair

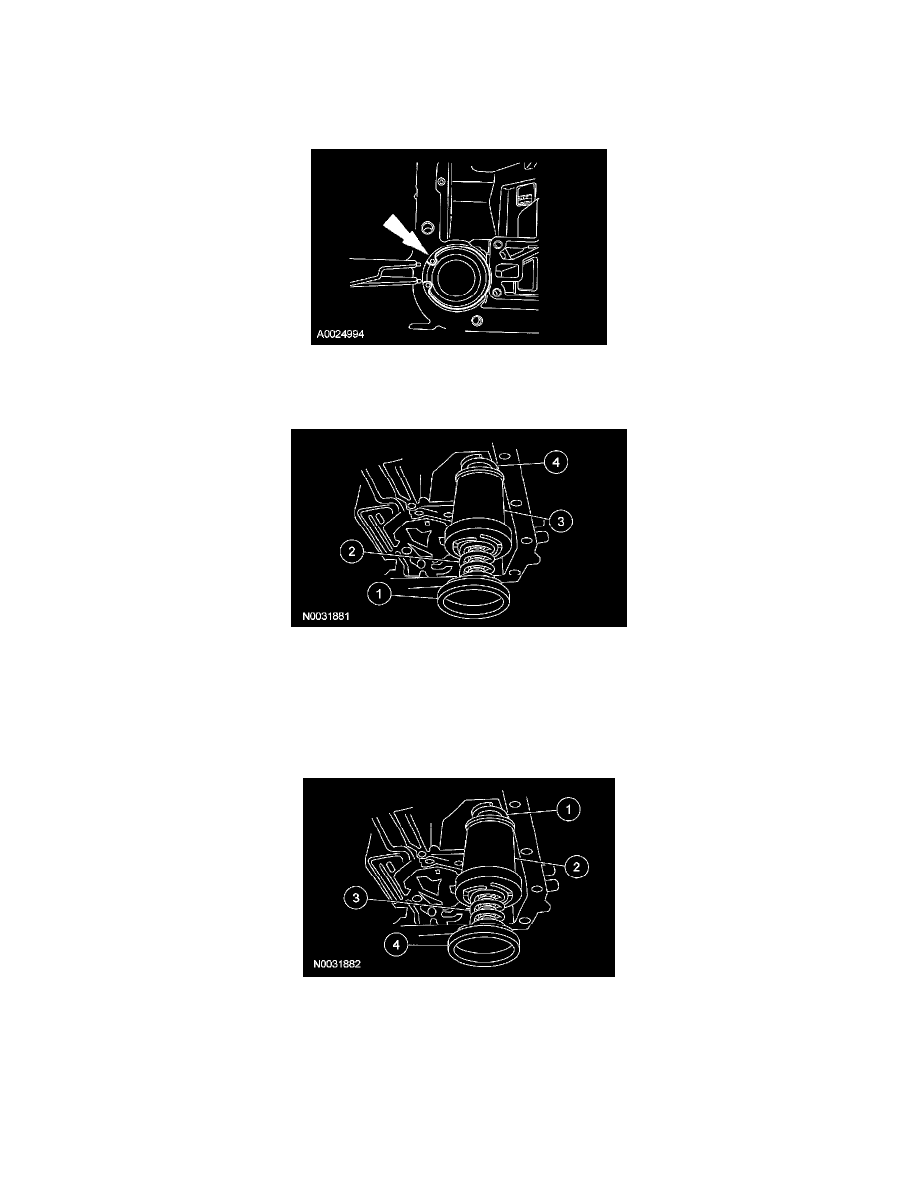

1-2 Accumulator
1-2 Accumulator
Removal
1. Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring.
2. NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.
Remove the 1-2 accumulator.
1
Remove the 1-2 accumulator cover.
2
Remove the inner and outer lower 1-2 accumulator spring.
3
Remove the accumulator piston.
4
Remove the upper 1-2 accumulator spring.
Installation
1. Install the 1-2 accumulator.
1
Install the 1-2 accumulator upper spring.
2
Install the accumulator piston.
3
Install the inner and outer lower 1-2 accumulator spring.
4
Install the cover and seal assembly.
