Town Car V8-4.6L VIN V Flex Fuel (2006)
Install the transmission fluid pan and gasket.
1
Position the transmission fluid pan and gasket in place.
2
Install the transmission fluid pan bolts.
-
Tighten to 14 Nm (10 ft. lbs.).

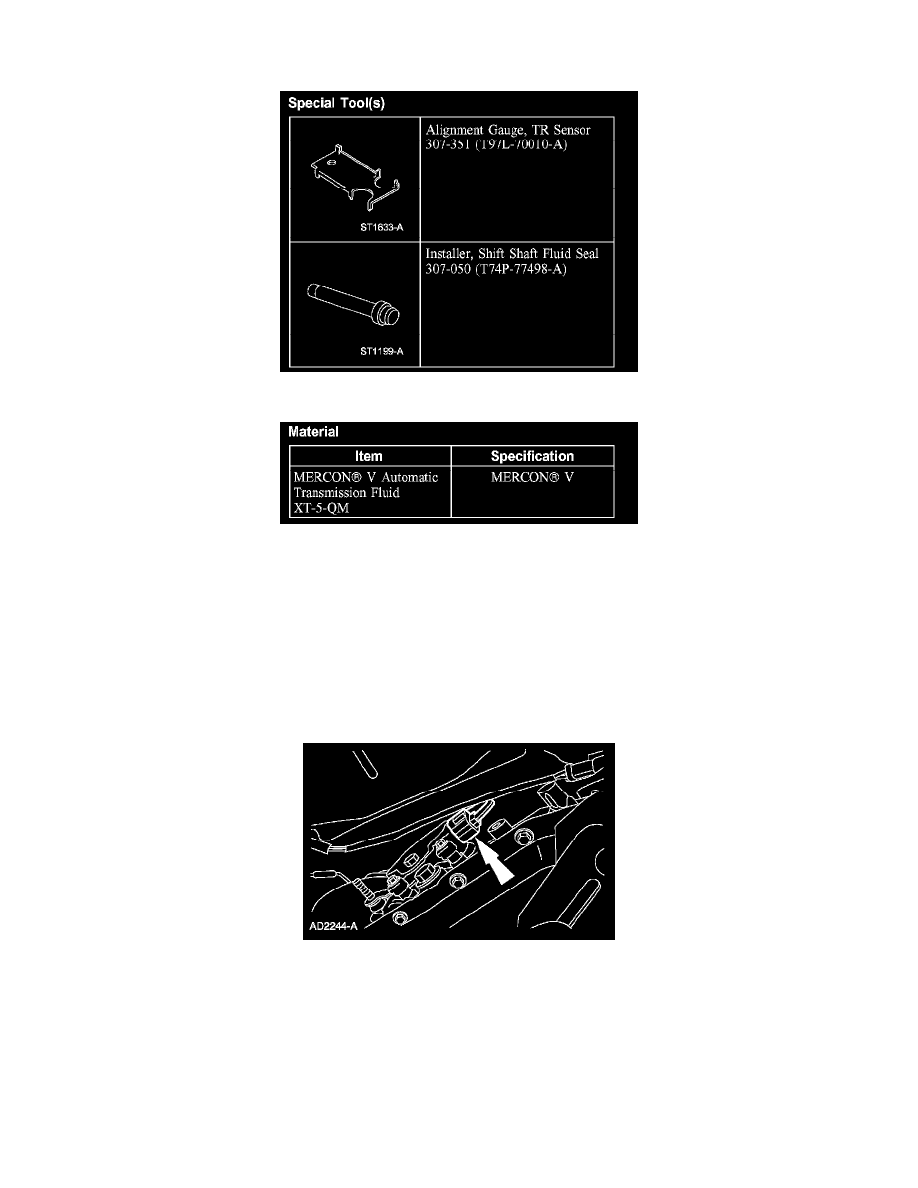

7. Install the digital TR sensor and loosely install the bolts.
8. NOTE: Manual shift lever shaft must be in the NEUTRAL position.
Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.
9. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
Tighten the screws in an alternating sequence.
^
Tighten to 9 Nm (80 inch lbs.).
