Page 7
background image

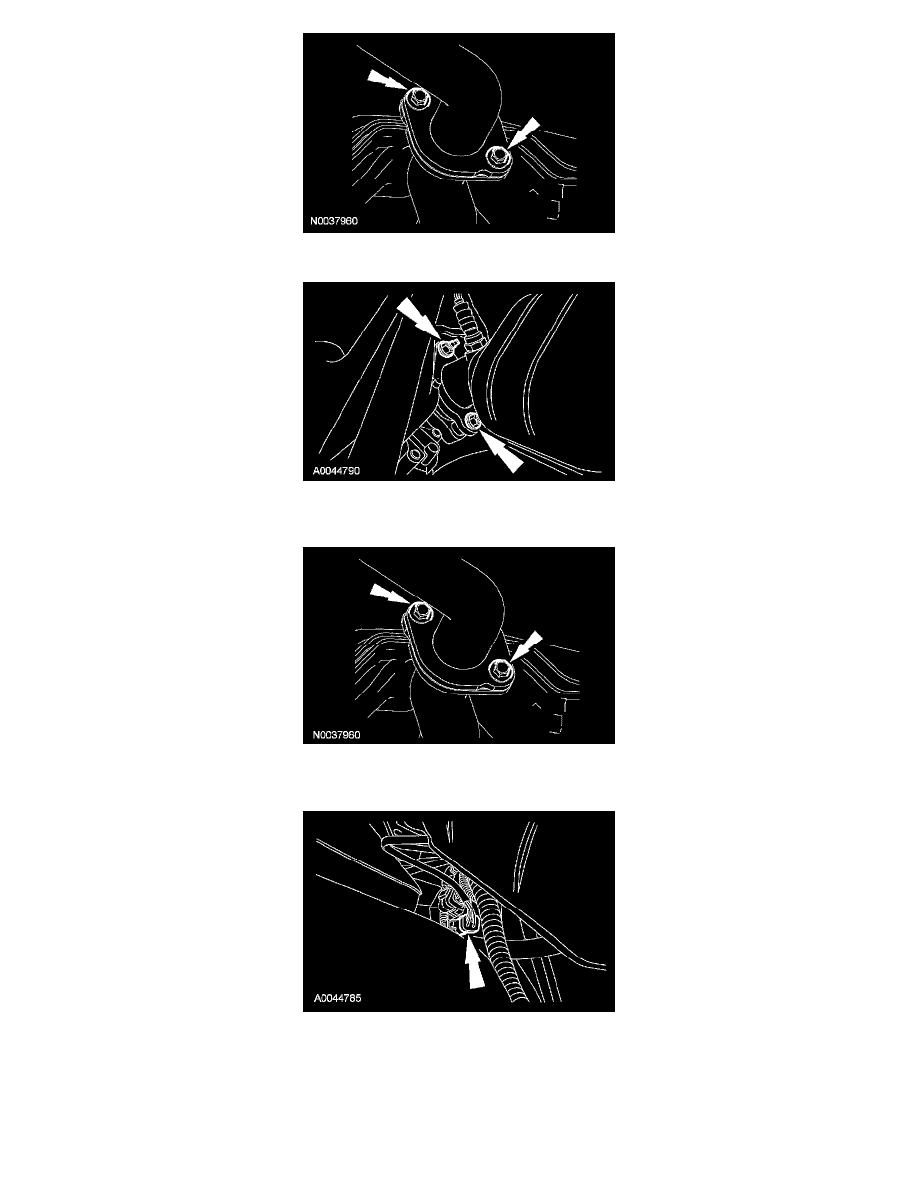

8. Install a new gasket and position the RH catalytic converter assembly in place and loosely install the bolts. Do not tighten the bolts at this time.

9. Install the RH exhaust flange nuts.

^

Tighten to 40 Nm (30 ft. lbs.).

10. Tighten the RH exhaust bolts.

^

Tighten to 40 Nm (30 ft. lbs.).

11. Connect the RH H02S sensor connector.
