Windshield Washer Pump: Service and Repair

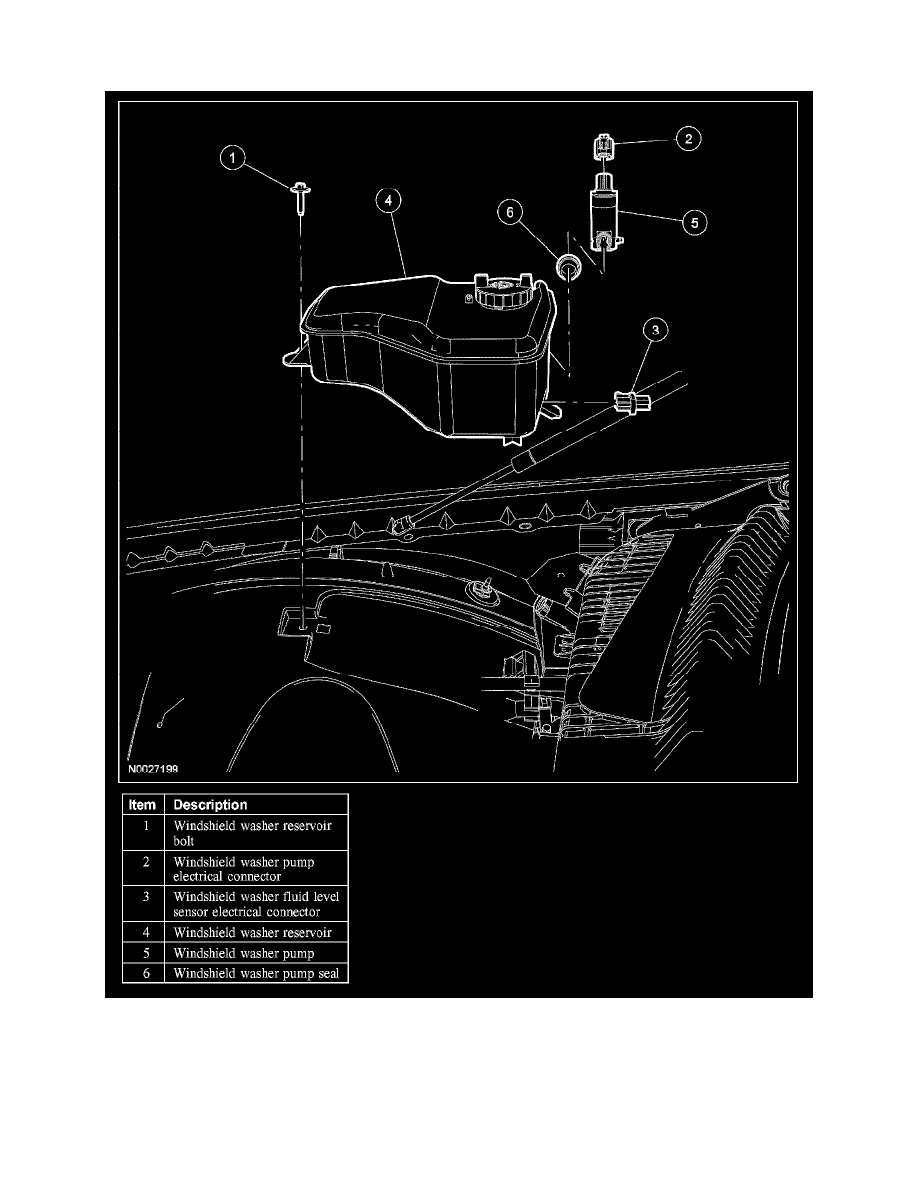

WINDSHIELD WASHER PUMP AND RESERVOIR

Removal and Installation

1. Disconnect the battery.
2. Remove the bolt and position the windshield washer reservoir aside.
3. Disconnect the windshield washer pump electrical connector.

4. WARNING:  Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on label of

washer solution container. Failure to follow these instructions may result in personal injury.
