Door Lock Cylinder|Testing and Inspection|Page 7706 > < Door Lock Cylinder|Testing and Inspection|Page 7704
Page 2
background image

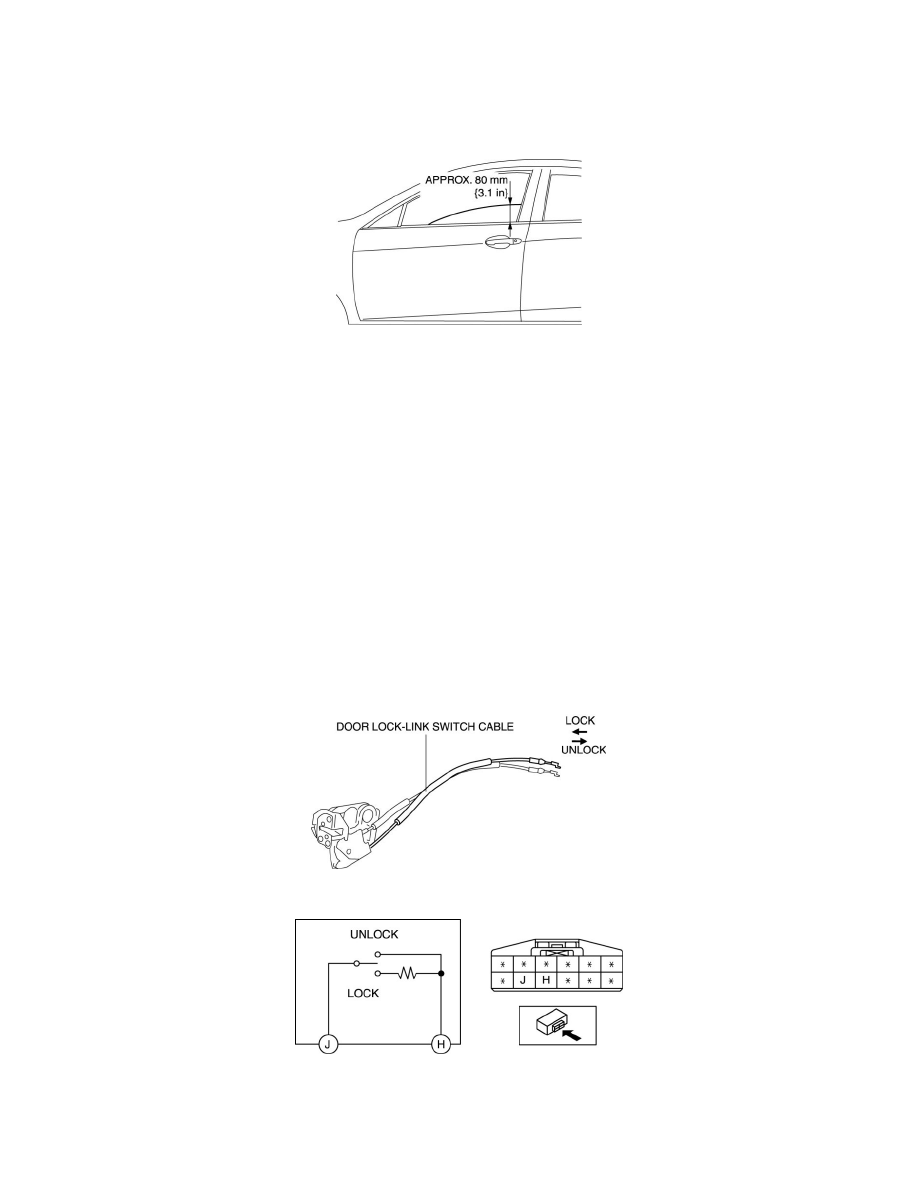

6. Lift the clip in the direction of the arrow (1), and pull out the key rod in the direction of the arrow (2).

7. Press the tab on the front outer handle bracket in the direction of the arrow.

8. Maintaining the condition in Step 7, remove the front key cylinder.

Door Lock Cylinder|Testing and Inspection|Page 7706 > < Door Lock Cylinder|Testing and Inspection|Page 7704
