6 L4-2.5L (2010)
Power Door Lock Switch: Testing and Inspection
DOOR LOCK SWITCH INSPECTION
1. Disconnect the negative battery cable.
2. Remove the inner garnish. See: Doors, Hood and Trunk/Doors/Front Door/Front Door Panel/Service and Repair/Removal and Replacement/Inner
Garnish Removal/Installation
3. Remove the front door trim. See: Doors, Hood and Trunk/Doors/Front Door/Front Door Panel/Service and Repair/Removal and
Replacement/Front Door Trim Removal/Installation
4. Remove the inner handle. See: Doors, Hood and Trunk/Doors/Front Door/Front Door Handle/Front Door Interior Handle/Service and Repair

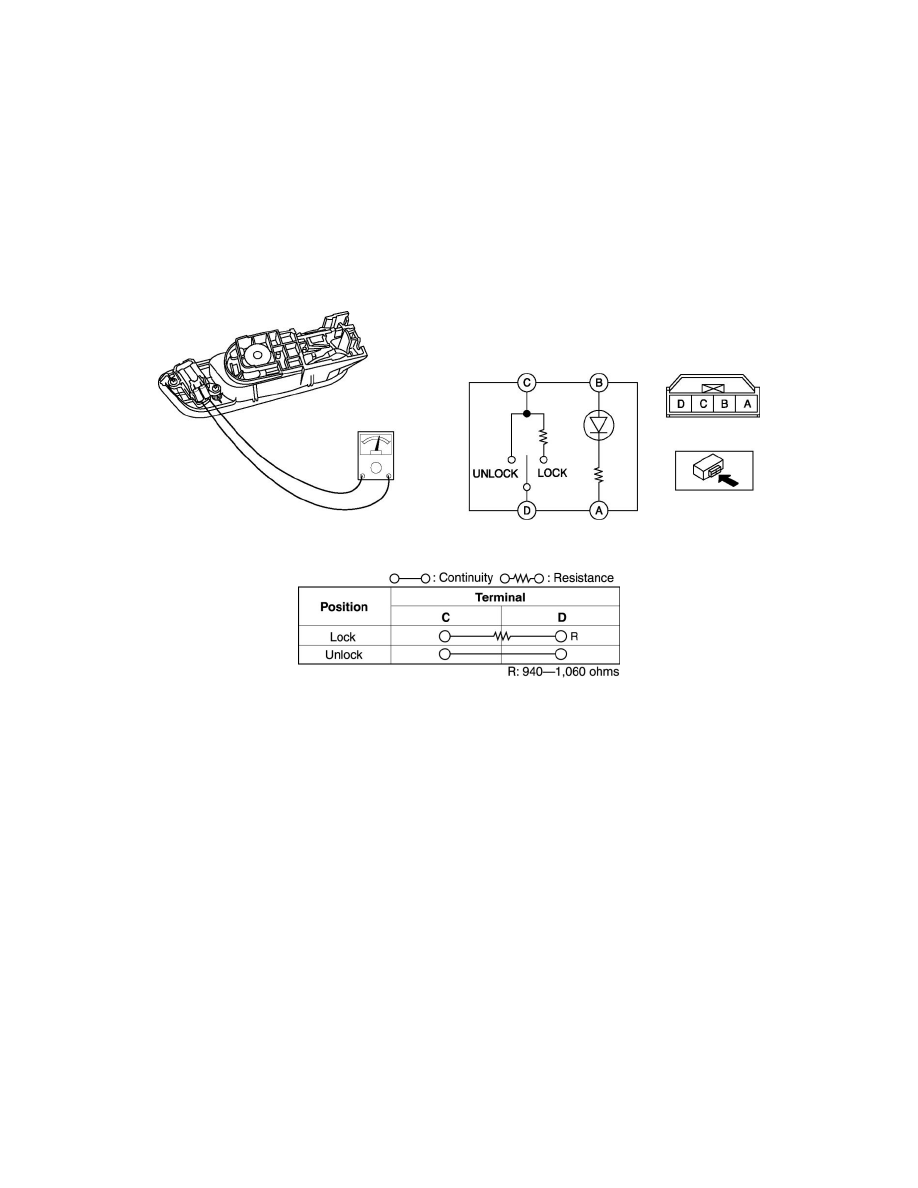

5. Inspect for continuity between the door lock switch terminals using an ohmmeter.
-
If not as indicated in the table, replace the door lock switch.
6. Apply battery voltage to hazard switch terminal B, and connect terminal A to ground.
7. Verify that the LED illuminates.
-
If there is any malfunction, replace the door lock switch.
