6 L4-2.5L (2010)
Seat Back Frame: All Technical Service Bulletins
Interior - Front Seat Back Squeaking Noises
Bulletin No: 09-064/09
Last Issued: 10/27/2009
Subject:
SQUEAKING NOISE FROM SEAT BACK DUE TO FRAME AND SPRING CONTACT
APPLICABLE MODEL(S) / VINS
2006-2010 MX-5
2004-2010 RX-8
2004-2010 MAZDA3
2006-2010 MAZDA5
2003-2010 MAZDA6
2007-2010 CX-7
2007-2010 CX-9
DESCRIPTION
Some vehicles may exhibit a squeaking noise coming from the front seat back due to contact between the seat frame and seat frame spring.
Customers having these concerns should have their vehicle repaired using the following repair procedure.
REPAIR PROCEDURE
1. Verify customer complaint.
2. Remove the headrest.
3. Remove the seat trim and seat back pad according to 2010 Mazda3 MS3 online instructions or Workshop Manual (section 09-13 FRONT SEAT
BACK TRIM REMOVAL/INSTALLATION).

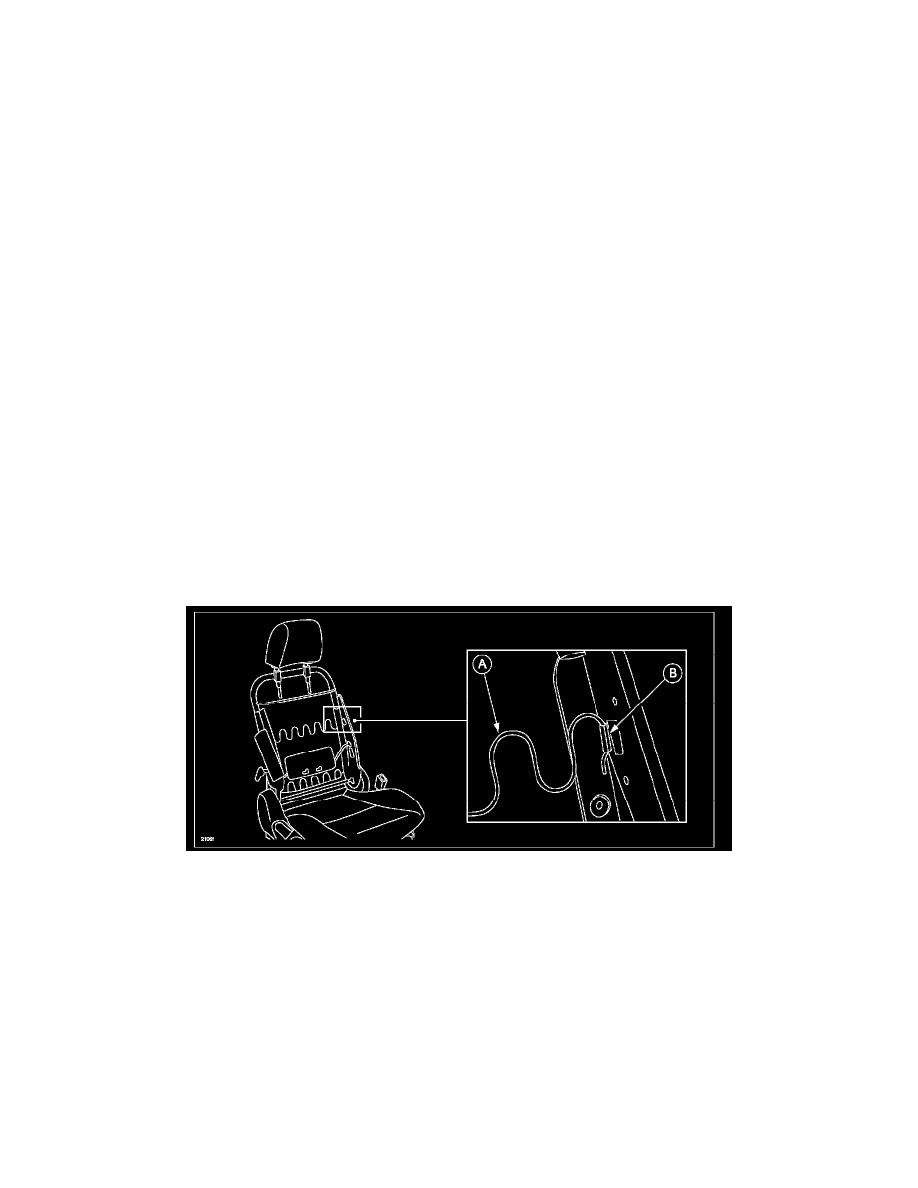

4. Widen clamp (B) to remove spring (A).
