6 L4-2.5L (2010)
Wheel Speed Sensor: Service and Repair
Front ABS Wheel-Speed Sensor Removal/Installation
Dynamic Stability Control
FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION
1. Remove or install the front ABS wheel-speed sensor in the same order of vehicles with ABS/TCS. See:
Traction Control System
FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

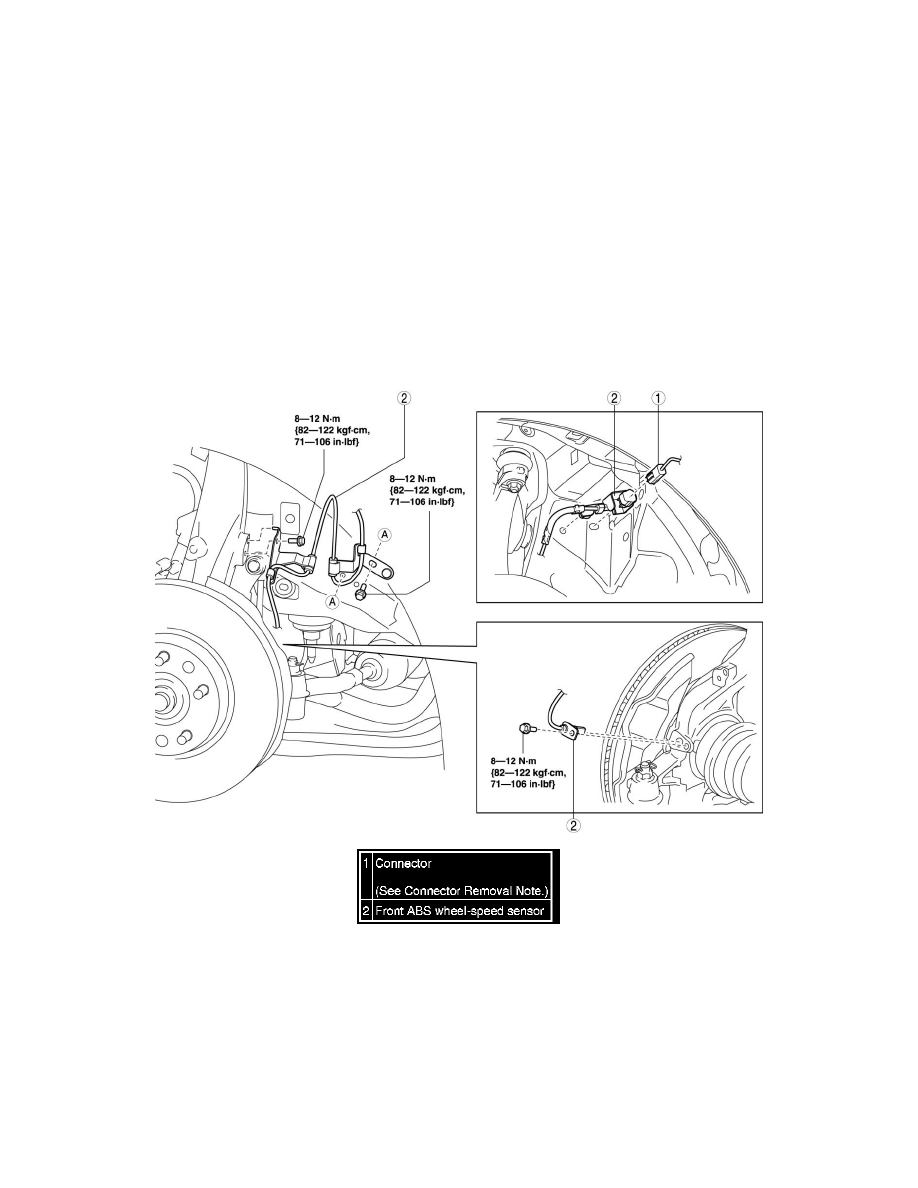

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, verify that there is no twisting in the ABS wheel-speed sensor.
Connector Removal Note
1. Pull aside the mudguard and disconnect the connector.
