6 L4-2.5L (2010)
NOTE:
-
The oil pressure can vary with oil viscosity and temperature.
Oil pressure (reference value) [oil temperature: 100 °C {212 °F}]
-
395-649 kPa {4.03-6.61 kgf/cm2, 57.3-94.1 psi} [3,000 rpm]
8. Stop the engine and wait until it is cool.
9. Disconnect the negative battery cable.
10. Remove the SSTs.
CAUTION:
-
Be sure there is no sealant adhering to the first two threads from the end of the oil pressure switch to prevent a possible operation malfunction.

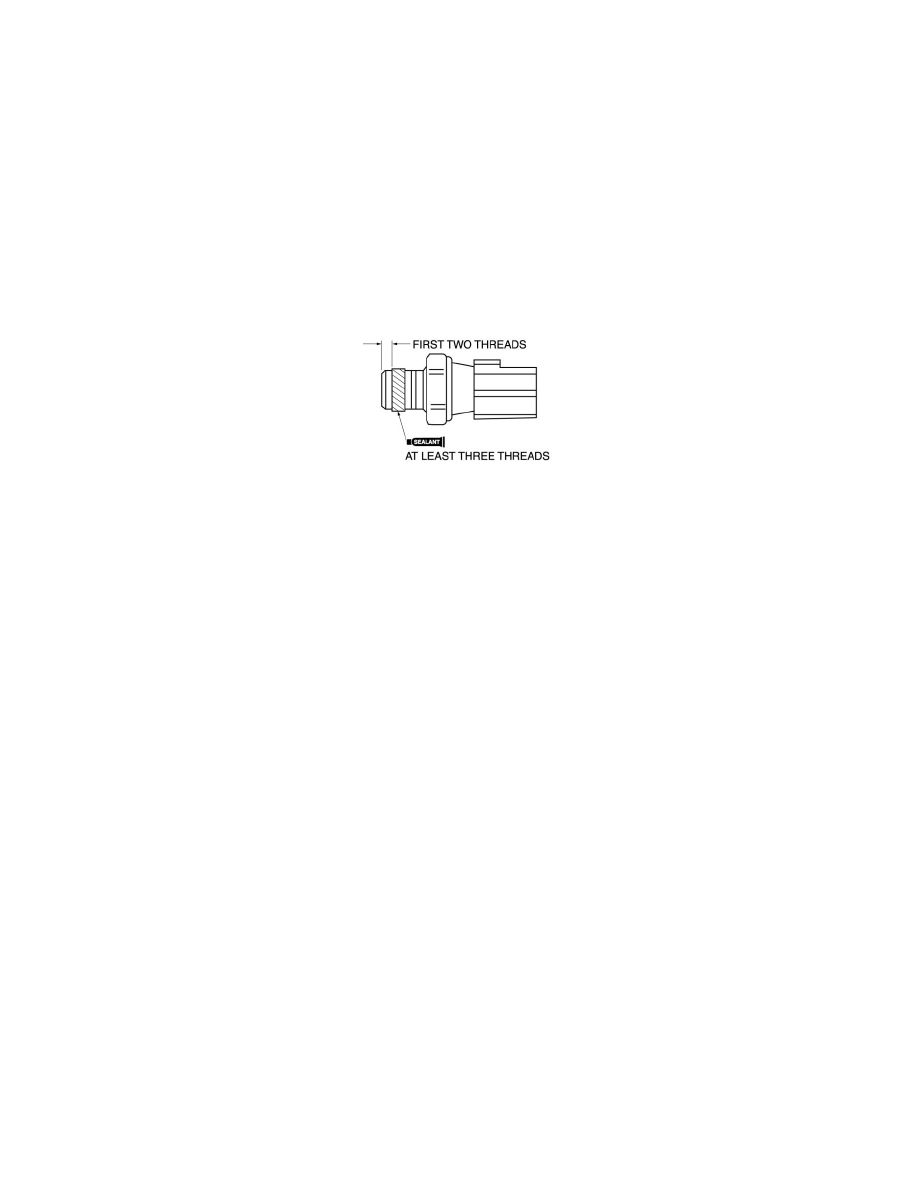

11. Apply silicone sealant to the oil pressure switch threads as shown in the figure.
CAUTION:
-
Install the oil pressure switch before the applied silicone sealant starts to harden.
12. Install the oil pressure switch.
Tightening torque
-
12-18 Nm {123-183 kgf-cm, 107-159 in-lbf}
13. Connect the negative battery cable.
14. Start the engine and confirm that there is no oil leakage.
-
If there is oil leakage, repair or replace the applicable part.
15. Install the aerodynamic under cover No.2. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic Under Cover No.2
Removal/Installation
