Repair/Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System
x. Side panel See: Body and Frame/Interior Moulding / Trim/Trim Panel/Service and Repair/Side Panel Removal/Installation
y. SIRIUS satellite radio unit See: Accessories and Optional Equipment/Radio, Stereo, and Compact Disc/Radio/Stereo/Radio Tuner/Service
and Repair
z. Passenger-side air bag module See: Restraint Systems/Air Bag Systems/Air Bag/Service and Repair/Removal and
Replacement/Passenger-Side Air Bag Module Removal/Installation
aa. A-pillar trims See: Body and Frame/Interior Moulding / Trim/Trim Panel/Service and Repair/A-Pillar Trim Removal/Installation
ab. Cowl grille See: Body and Frame/Cowl/Cowl Moulding / Trim/Service and Repair/Cowl Grille Removal/Installation
ac. Dashboard See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Removal and
Replacement/Dashboard Removal/Installation
3. Remove the A/C unit. See: Evaporator Core/Service and Repair/Removal and Replacement
4. Disassemble the A/C unit. See: Evaporator Core/Service and Repair/Overhaul
5. Remove in the order indicated table.
6. Install in the reverse order of removal.

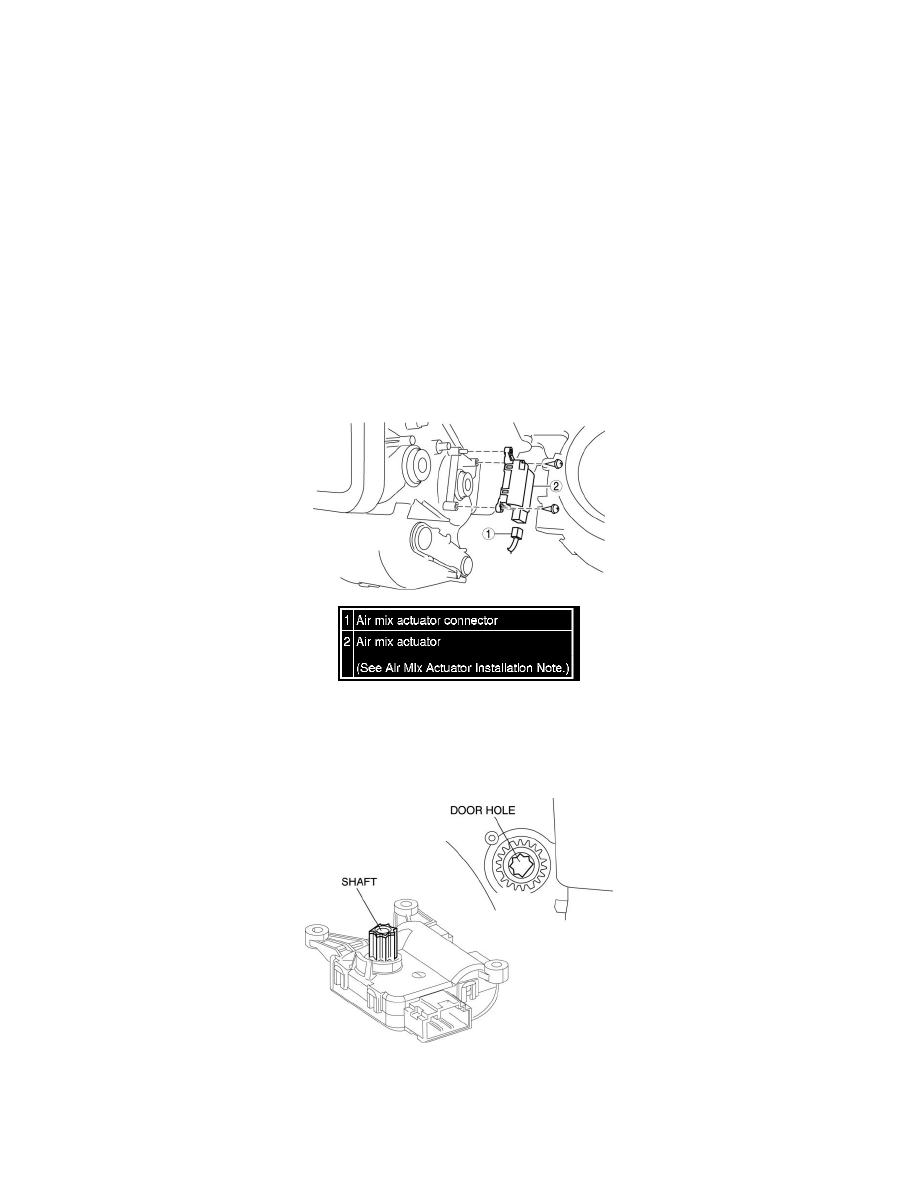

Air Mix Actuator Installation Note
1. Insert the air mix actuator shaft to the door hole aligned with each shape same as removed position.
Airflow Mode Actuator Removal/Installation - Full-Auto Air Conditioner
AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]
