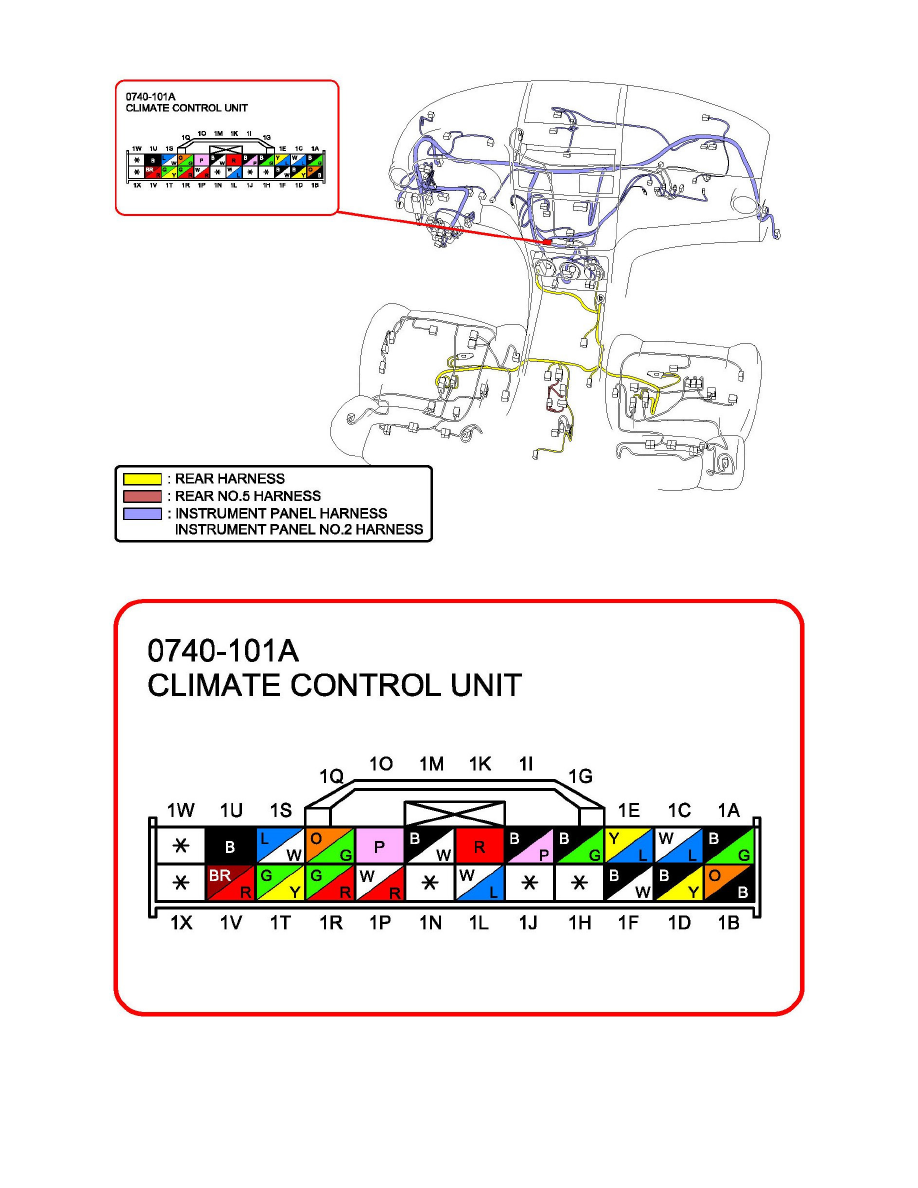

Control Assembly: Connector Locations

Climate Control Unit

Heating and Air Conditioning
Control Assembly, HVAC / Component Locations
