Page 1

background image

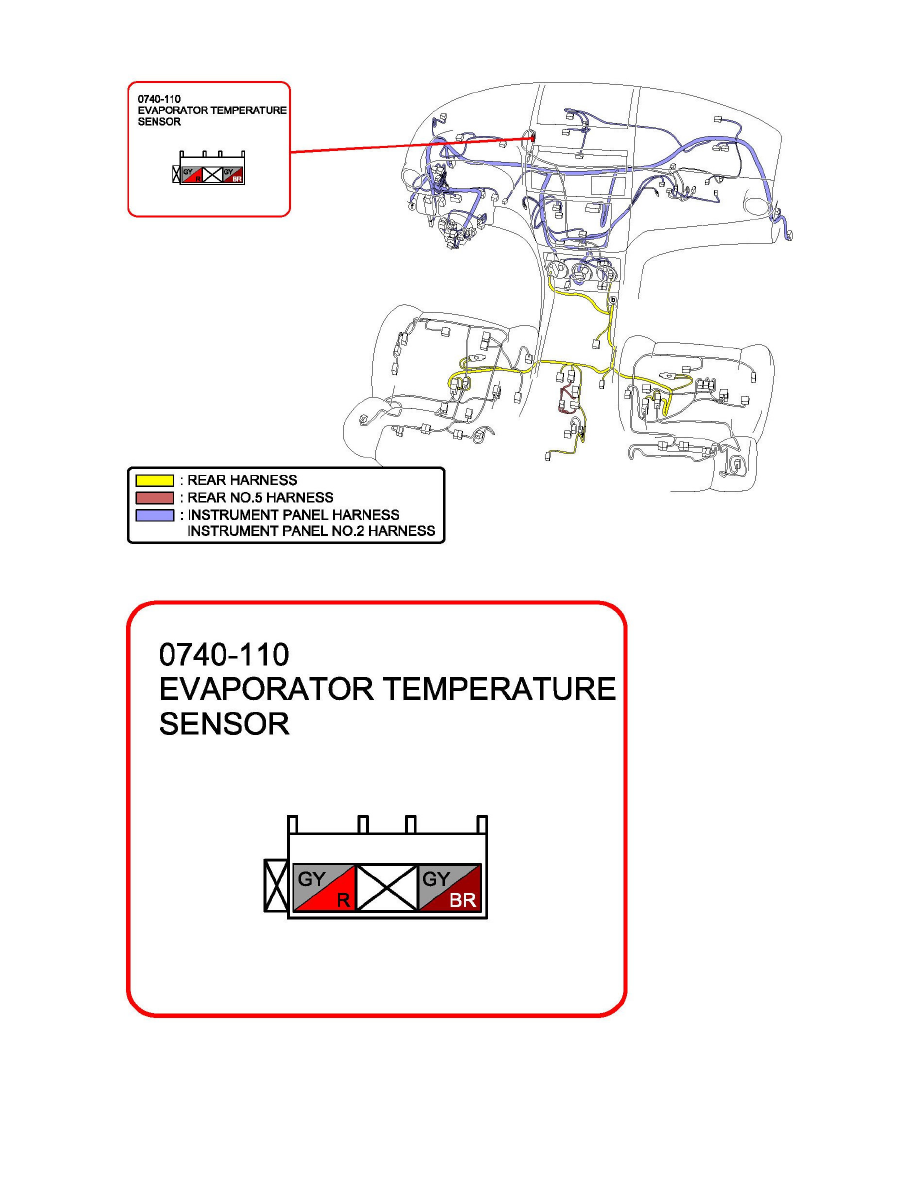

Evaporator Temperature Sensor / Switch: Connector Locations

Evaporator Temperature Sensor

Heating and Air Conditioning
Evaporator Temperature Sensor / Switch / Component Locations
Page 6415
