Body Control Module: Service and Repair
BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION
CAUTION:
-
When replacing the BCM, the configuration procedure must be performed before removing the BCM. Replacing the BCM without performing the
configuration procedure will result in system malfunction.
1. Perform the BCM configuration when replacing it. See: Testing and Inspection/Programming and Relearning/Body Control Module (BCM)
Configuration
2. Disconnect the negative battery cable.
3. Remove the front scuff plate (driver-side). See: Body and Frame/Interior Moulding / Trim/Scuff Plate/Service and Repair/Front Scuff Plate
Removal/Installation
4. Remove the front side trim (driver-side). See: Body and Frame/Interior Moulding / Trim/Trim Panel/Service and Repair/Front Side Trim
Removal/Installation

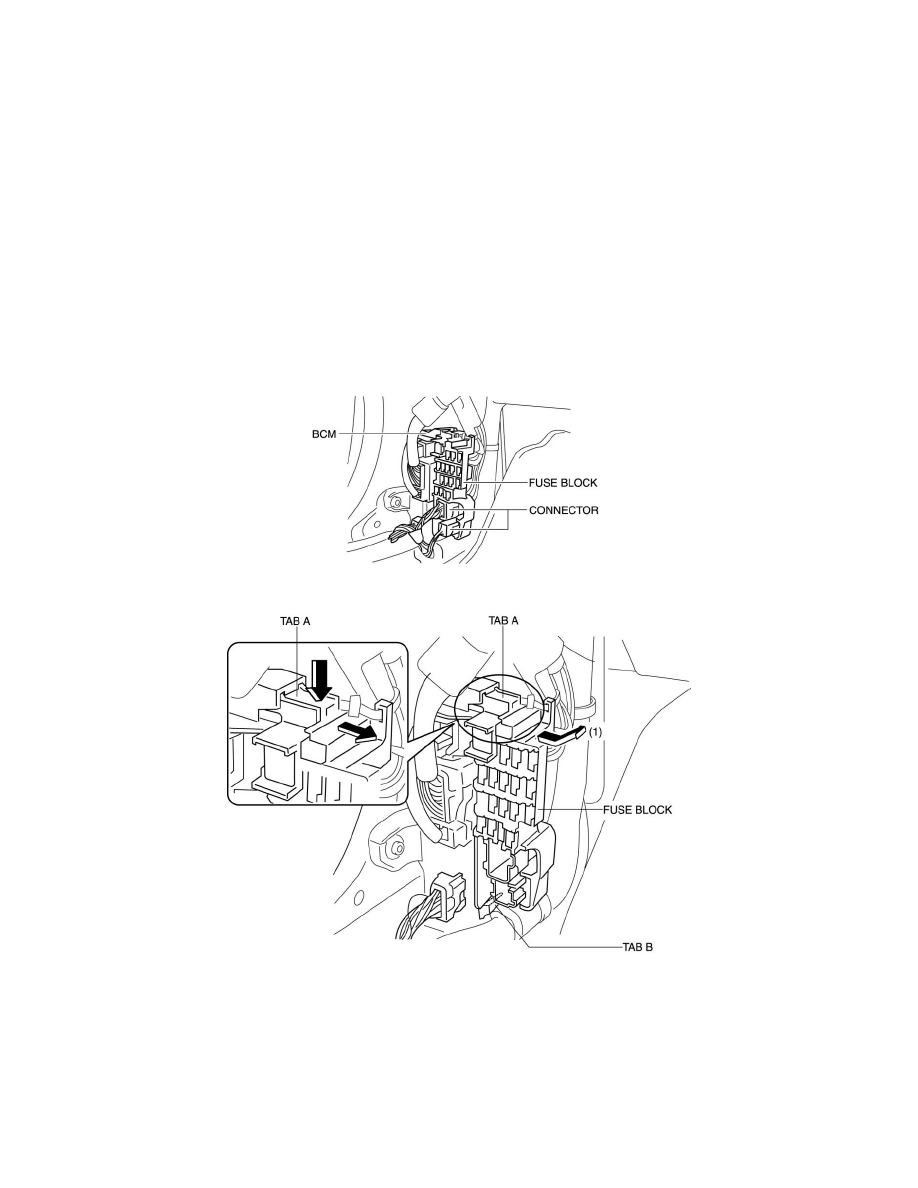

5. Disconnect the connector at the position shown in the figure.
6. Remove tab A as shown in the figure, pull the fuse block in the direction of the arrow (1), and remove tab B.
7. Remove the fuse block.
8. Disconnect the connector at the position shown in the figure.
