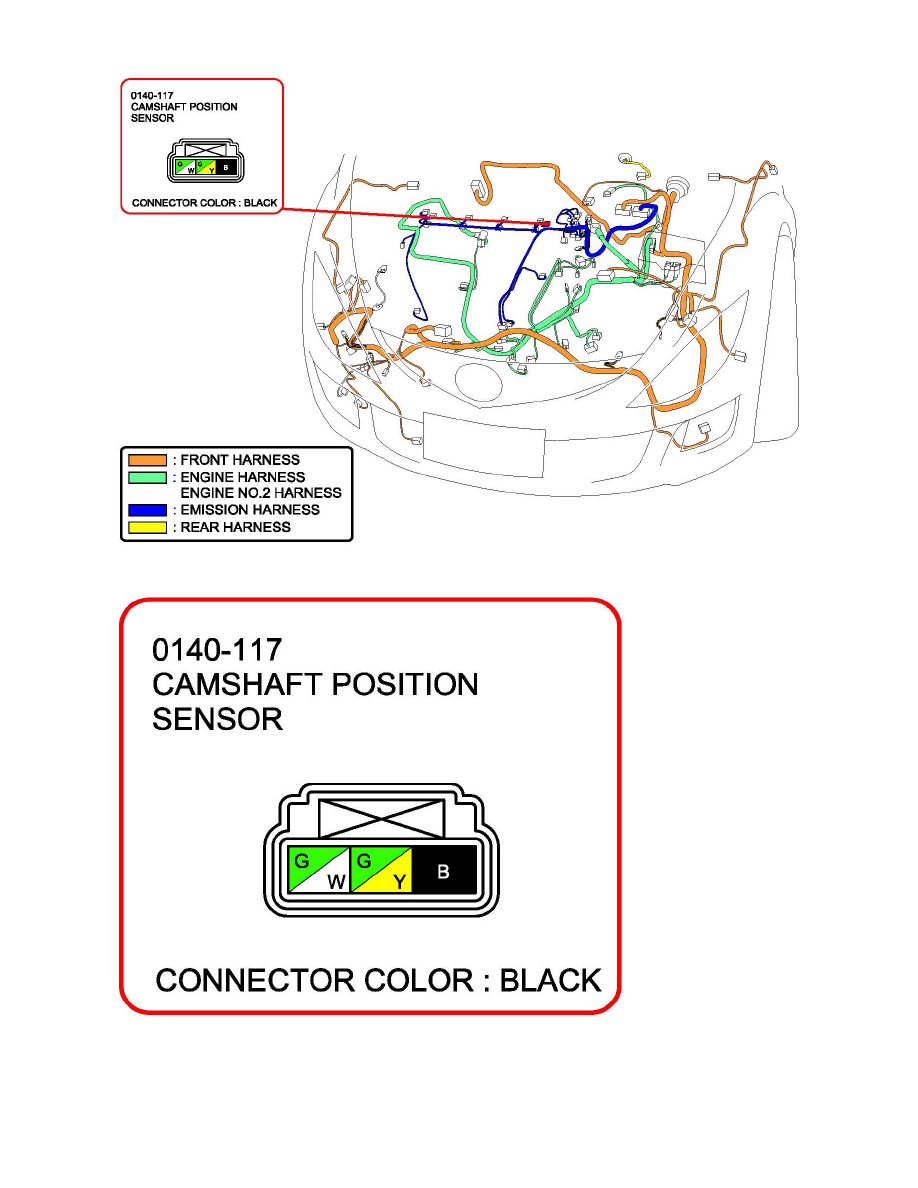

Camshaft Position Sensor: Connector Locations

Camshaft Position Sensor

Powertrain Management
Ignition System
Sensors and Switches - Ignition System / Camshaft Position Sensor / Component Locations
Page 3623
