Page 8
background image

*1

Calculated value; differs from terminal voltage

*2

MTX

*3

Vehicles equipped with cruise control switch

-

Following PIDs are for the ATX models. If inspects for following PIDs,  See: Transmission Control Systems/Testing and Inspection/Scan Tool
Testing and Procedures/On-Board Diagnostic System PID/Data Monitor Inspection - FS5A-EL

Without Using the SST

CAUTION:

-

The PCM terminal voltages vary with change in measuring conditions and vehicle conditions. Always carry out a total inspection of the input
systems, output systems, and PCM to determine the cause of trouble. Otherwise, a wrong diagnosis will be made.

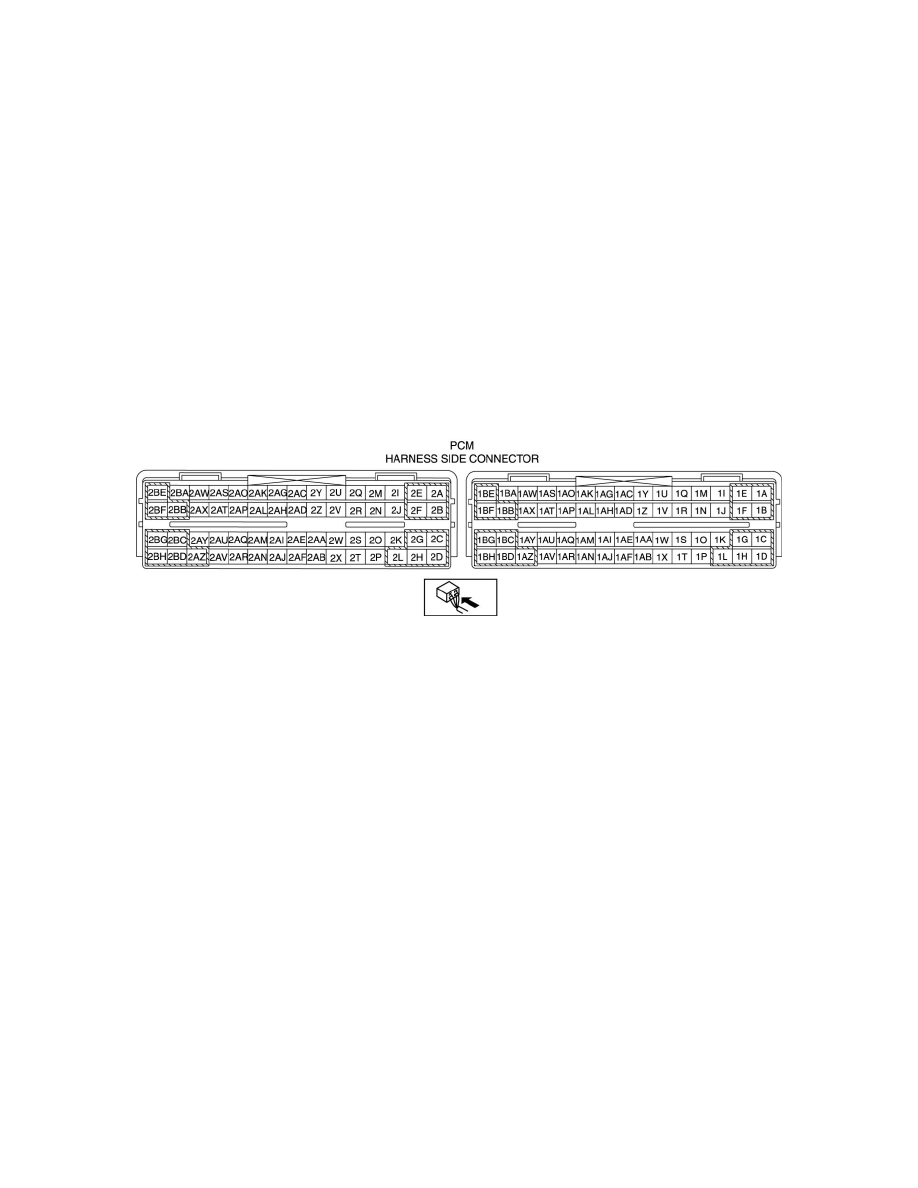

1. Measure the voltage at each terminal.

-

If any incorrect voltage is detected, inspect the related system(s), wiring harnesses and connector(s) referring to the Action column in the
terminal voltage table.

Terminal voltage table (Reference)
