6 L4-2.5L (2010)

Page 15
background image

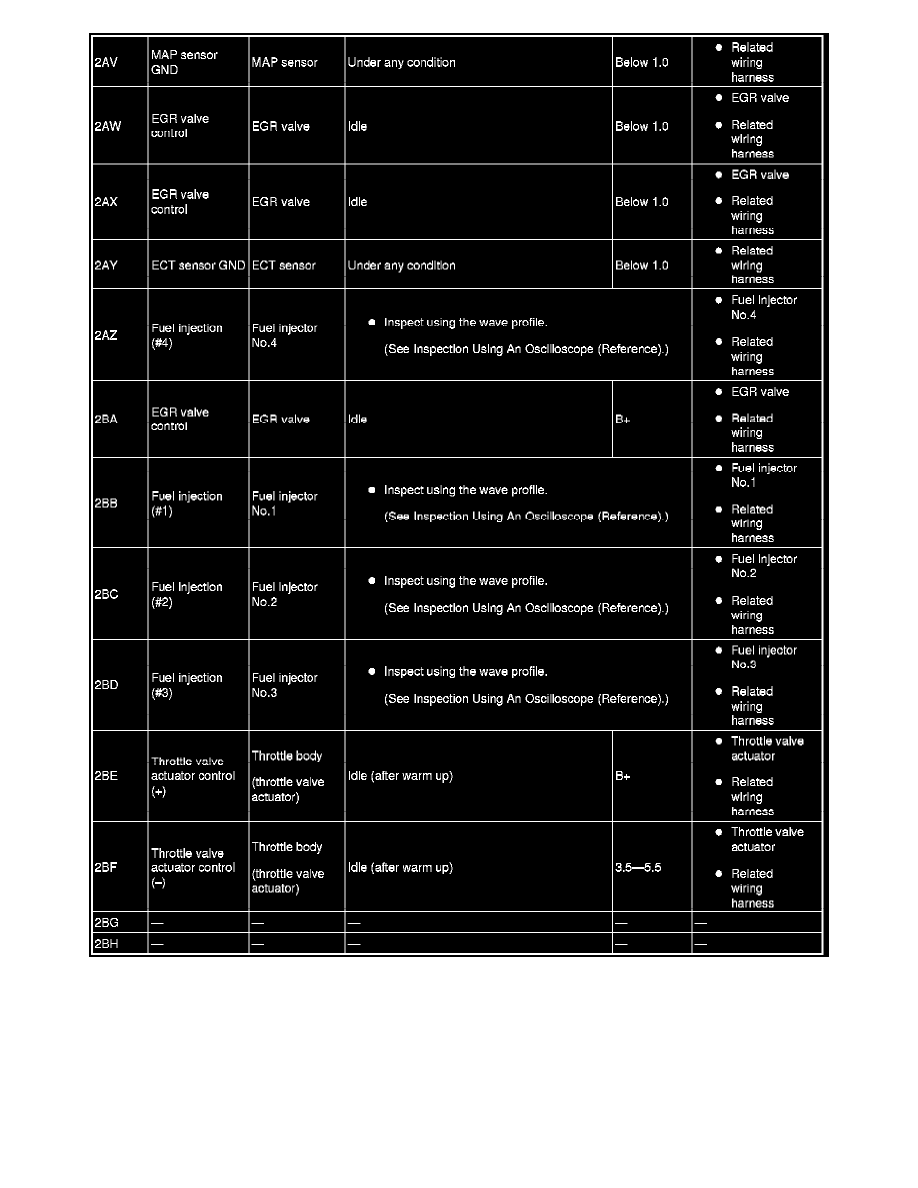

Terminal Voltage Table (Reference) Part 8

*1

Vehicles equipped with cruise control switch

*2

Without advanced keyless entry and push button start system

*3

With advanced keyless entry and push button start system

*4

MTX
