6 L4-2.5L (2010)

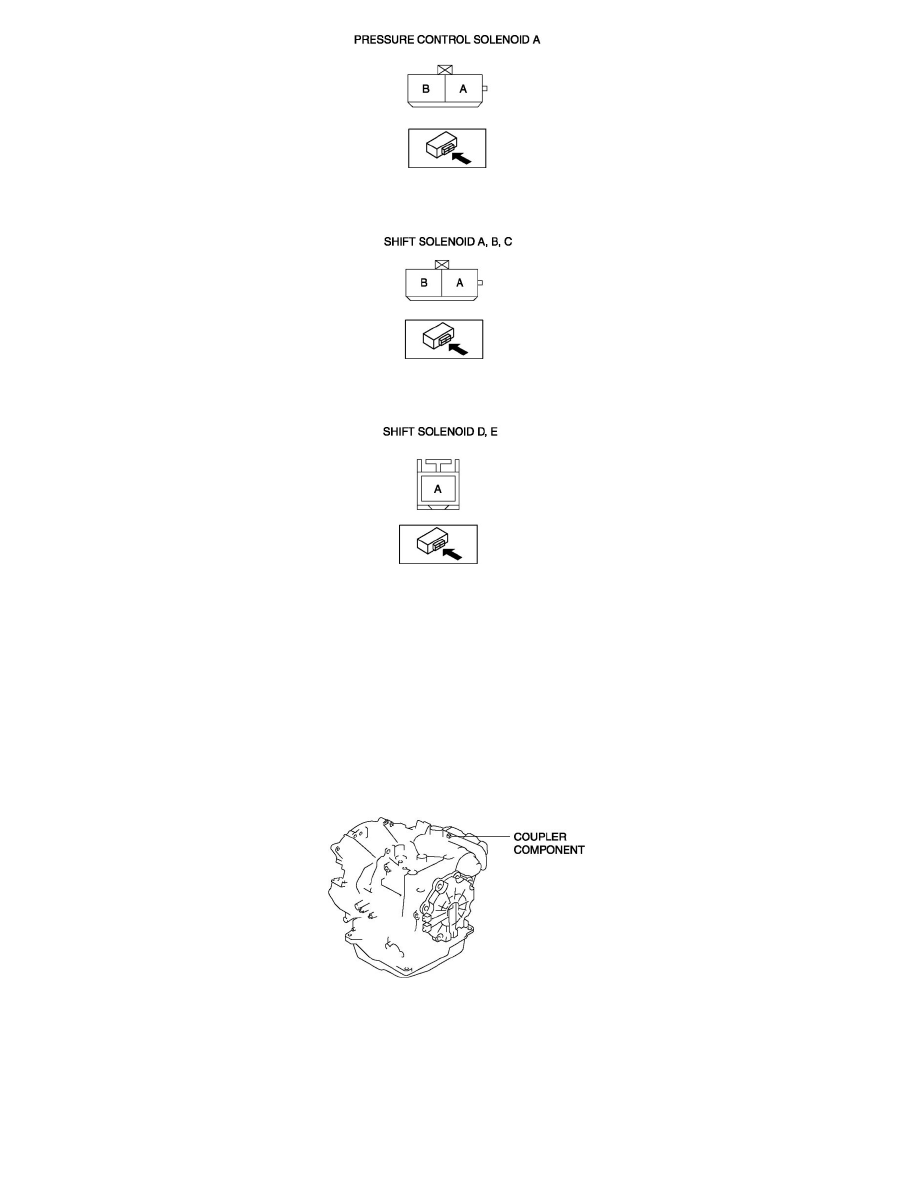

Pressure control solenoid A specification
-
2.4-7.3 ohms
Shift solenoid A, B, C specification
-
1.0-4.2 ohms
Shift solenoid D, E specification
-
10.9-26.2 ohms
Secondary Control Valve Body
On-vehicle inspection
1. Perform the following procedures.
a. Disconnect the negative battery cable.
b. Remove the battery and battery tray.
c. Disconnect the coupler component connector.
2. Measure the resistance between the coupler component terminals A and B.
