6 L4-2.5L (2010)

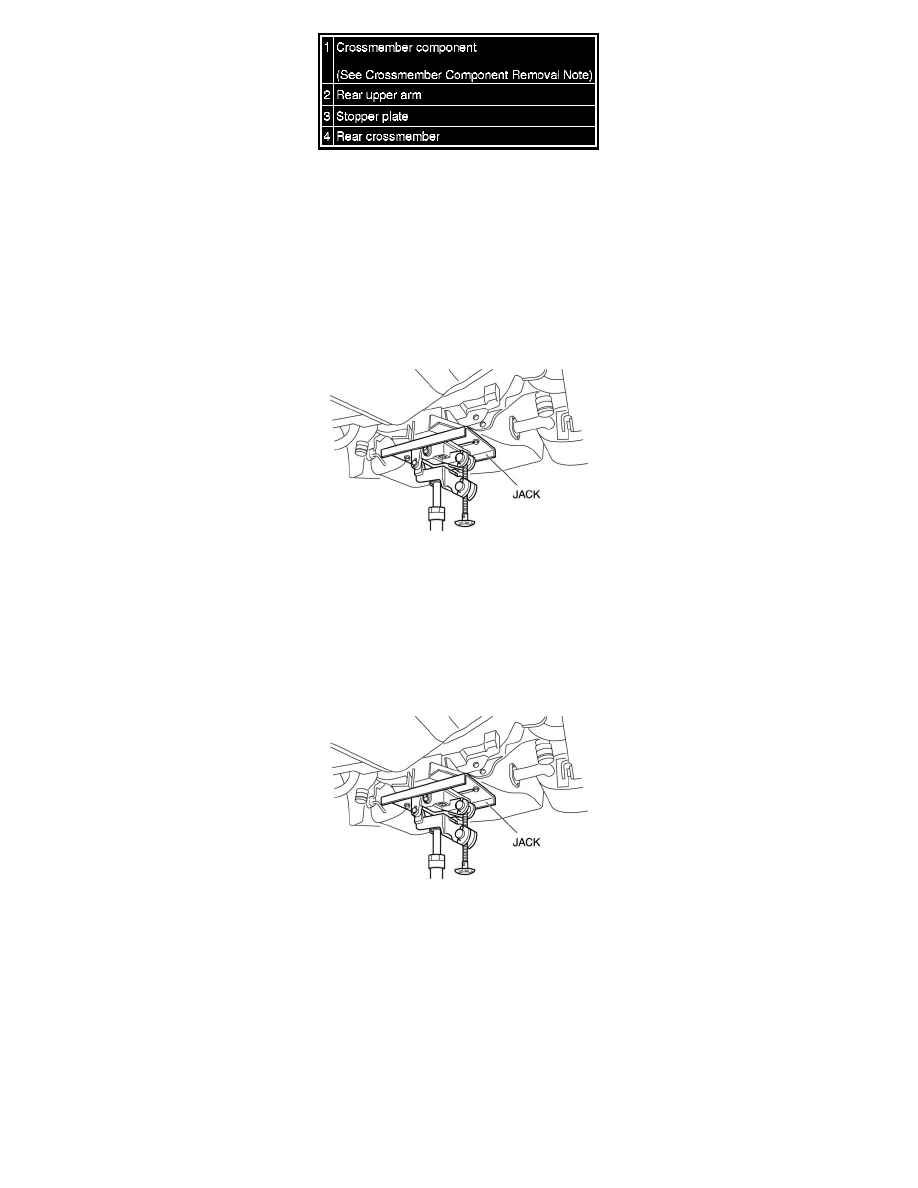

Crossmember Component Removal Note
WARNING:
-
Removing the crossmember component is dangerous. The crossmember component could fall and cause serious injury or death. Verify that the
jack securely supports the crossmember component.
1. Loosen the rear upper arm inner side.
2. Remove the rear upper arm outer side.
3. Support the crossmember component using a jack and remove the nuts.
4. Remove the crossmember component.
Crossmember Component Installation Note
WARNING:
-
Installing the crossmember component is dangerous. The crossmember component could fall and cause serious injury or death. Verify that the jack
securely supports the crossmember component.
1. Support the crossmember component using a jack.
2. Install the crossmember component.
3. Install the rear upper arm outer side.
