6 L4-2.5L (2010)
Secondary Control Valve Body
1. Remove the secondary control valve body.
a. Disconnect the negative battery cable.
b. Remove the battery and battery tray. See: Starting and Charging/Battery/Service and Repair/Removal and Replacement
c. Remove the PCM and PCM bracket. See: Powertrain Management/Computers and Control Systems/Engine Control Module/Service and
Repair/Removal and Replacement
d. Remove the aerodynamic under cover NO.2. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic Under Cover No.2
Removal/Installation
e. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
f.
Drain the ATF into a separate suitable container. See: Automatic Transmission/Transaxle/Service and Repair/Procedures/Automatic Transaxle
Fluid (ATF) Replacement - FS5A-EL
g. Remove the oil cover.
h. Remove the secondary control valve body. See: Automatic Transmission/Transaxle/Valve Body/Service and Repair/Removal and
Replacement/Control Valve Body Removal/Installation - FS5A-EL

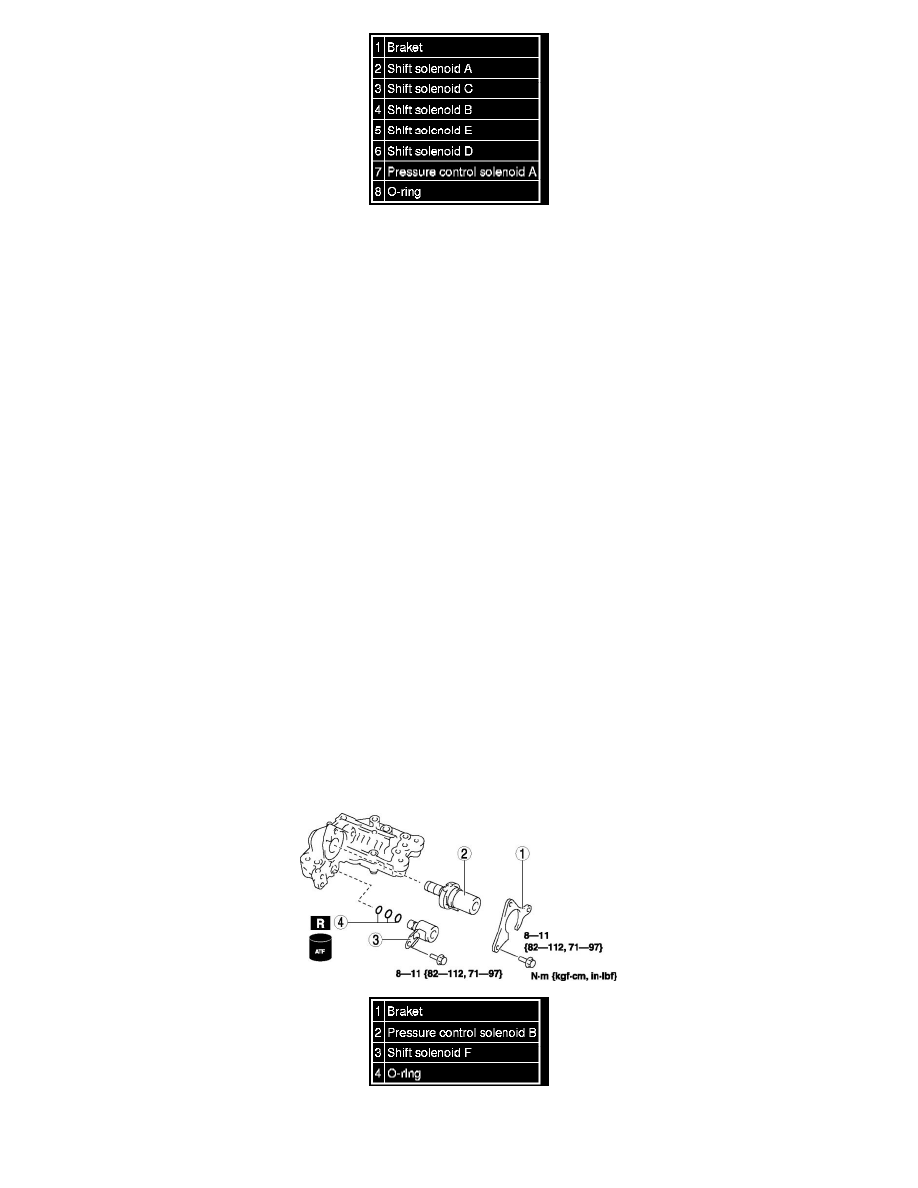

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Add the ATF. See: Automatic Transmission/Transaxle/Service and Repair/Procedures/Automatic Transaxle Fluid (ATF) Replacement - FS5A-EL
5. Perform the "Mechanical System Test". See: Transmission Control Systems/Testing and Inspection/Initial Inspection and Diagnostic
Overview/Mechanical System Test - FS5A-EL
6. Perform the "Road Test". See: Transmission Control Systems/Testing and Inspection/Initial Inspection and Diagnostic Overview/Road Test -
FS5A-EL
