6 L4-2.5L (2010)
Pressure Regulating Solenoid: Testing and Inspection
Solenoid Valve Inspection - AW6A-EL
SOLENOID VALVE INSPECTION [AW6A-EL]
CAUTION:
-
Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the
connector when disconnecting it.
-
Do not damage the terminals.
On-Vehicle Inspection
1. Disconnect the negative battery cable.
2. Remove the air cleaner component. See: Engine, Cooling and Exhaust/Engine/Intake Manifold/Service and Repair
3. Remove the TCM. See: Automatic Transmission/Transaxle/Control Module/Service and Repair/TCM Removal/Installation - AW6A-EL

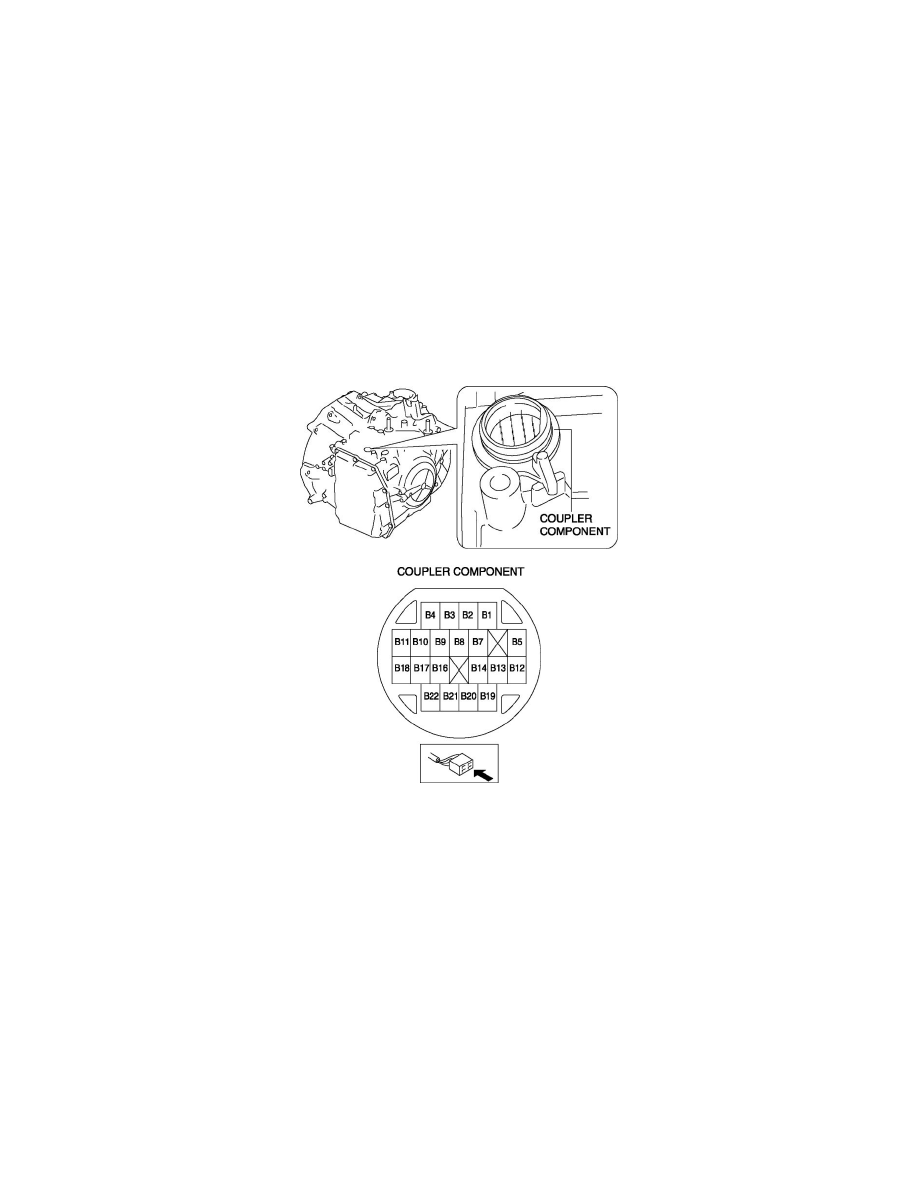

4. Measure the resistance between the following terminals.
-
If there is any malfunction, inspect the coupler component.
-
If the coupler component is normal, perform the following action.
Solenoid valve specification (ATF temperature: 20 °C {68 °F})
