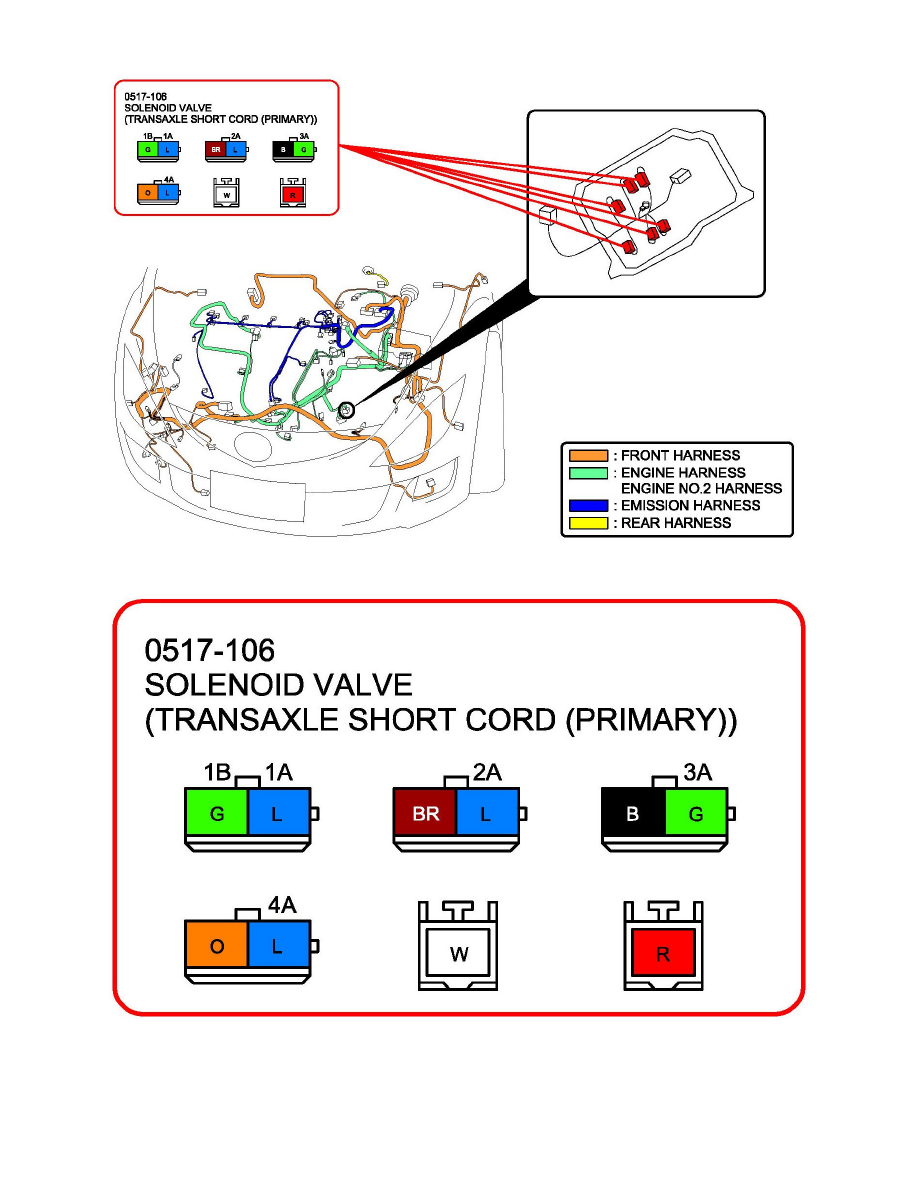

Shift Solenoid: Connector Locations

Solenoid Valve (Transaxle Short Cord (Primary))

Transmission and Drivetrain
Actuators and Solenoids - Transmission and Drivetrain / Actuators and Solenoids - A/T
Shift Solenoid, A/T / Component Locations
Page 3886
