6 L4-2.5L (2010)
-

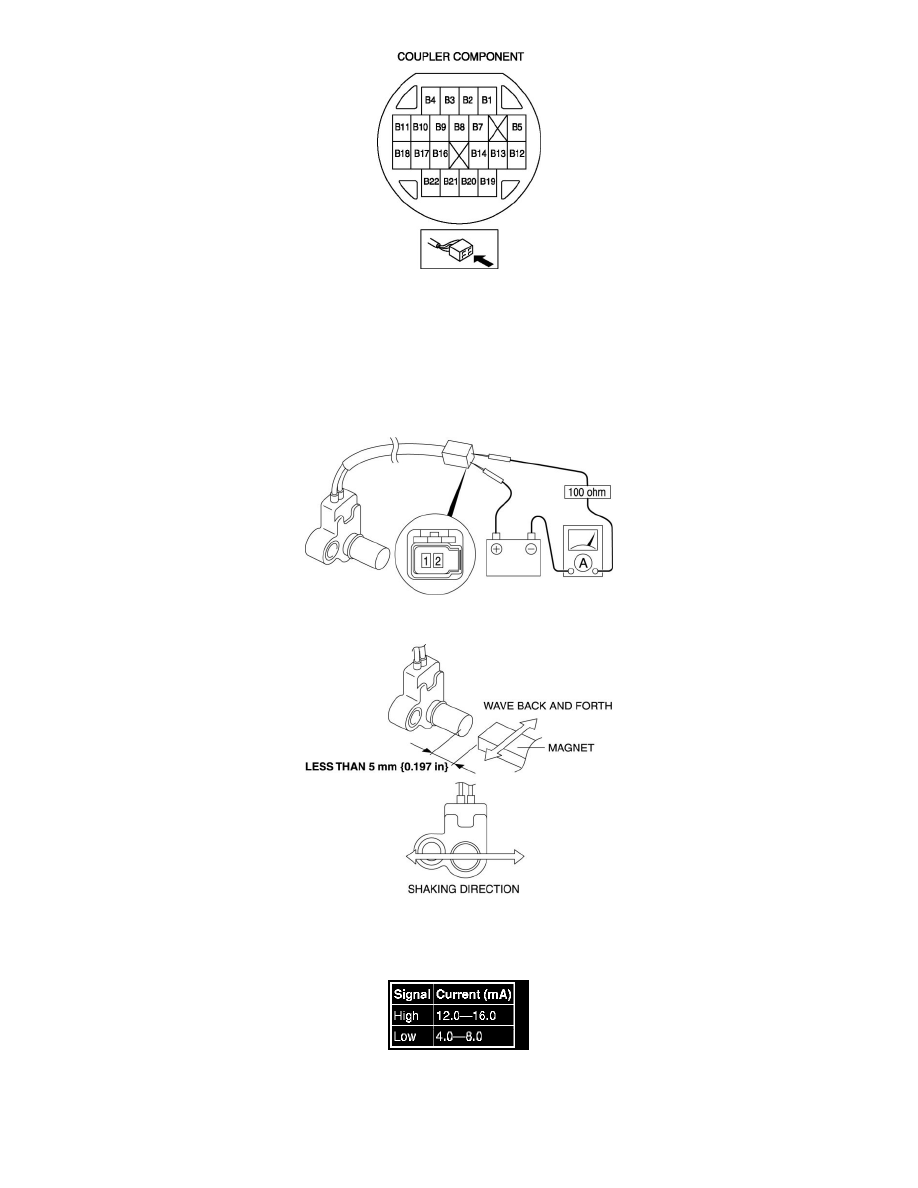

If there is no continuity, inspect the coupler component.
-
If the coupler component is normal, replace the input/turbine speed sensor. See: Service and Repair/Input/Turbine Speed Sensor
Removal/Installation - AW6A-EL
Off-Vehicle Inspection
1. Connect the input/turbine speed sensor terminal 2 to the battery positive terminal, connect the battery negative terminal to input/turbine speed
sensor terminal 1 through an ammeter set to a resistance of 100 ohm.
2. Measure the current while waving a magnet back and forth over the top of the input/turbine speed sensor (less than 5 mm {0.197 in}).
-
If there is any malfunction, replace the input/turbine speed sensor. See: Service and Repair/Input/Turbine Speed Sensor Removal/Installation -
AW6A-EL
Input/turbine speed sensor specification
Input/Turbine Speed Sensor Inspection - FS5A-EL
INPUT/TURBINE SPEED SENSOR INSPECTION [FS5A-EL]
