6 L4-2.5L (2010)

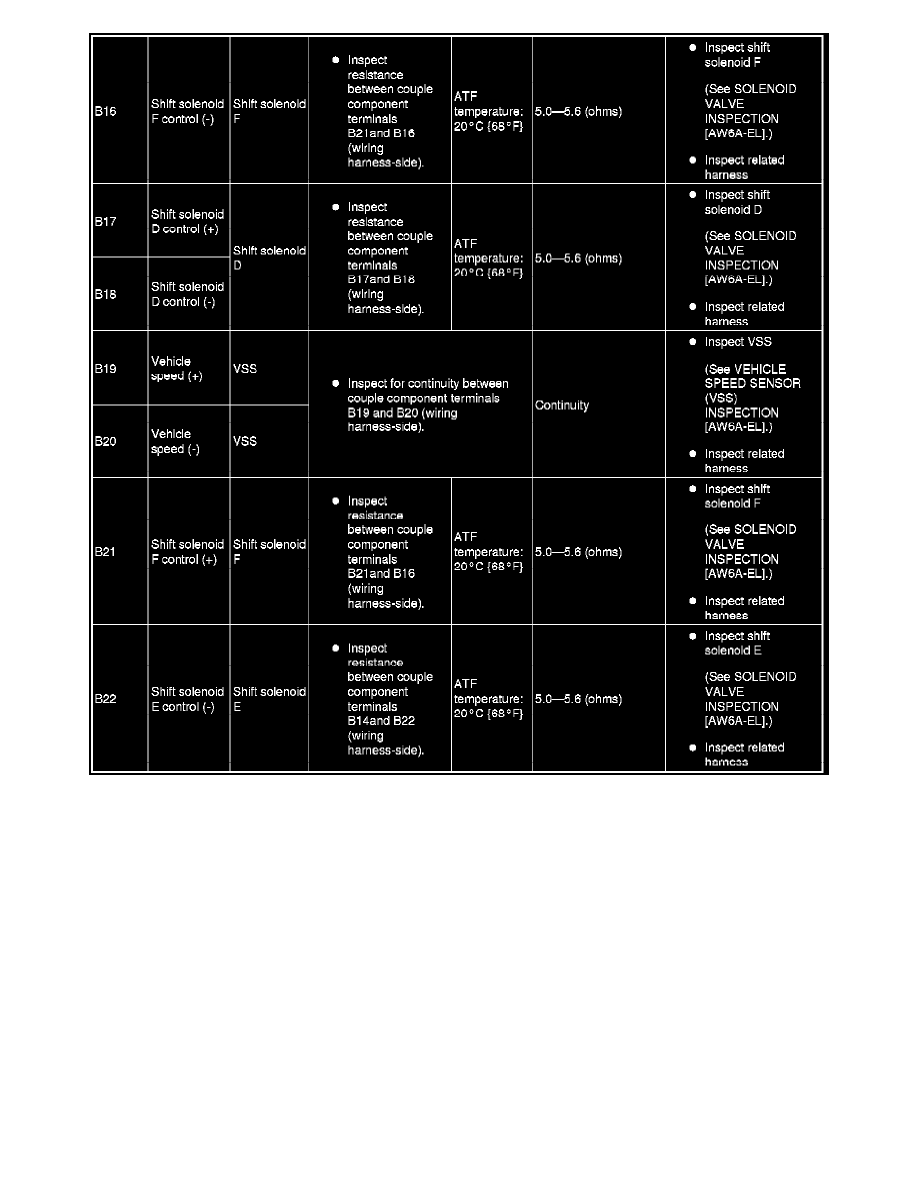

Terminal Continuity/Resistance Table (Reference) (Part 3)
TCM Inspection - FS5A-EL
TCM INSPECTION [FS5A-EL]
CAUTION:
-
Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the
connector when disconnecting it.
-
Do not damage the terminals.
NOTE:
-
The TCM terminal voltage can vary with conditions when measuring and changes due to age deterioration on the vehicle, causing false diagnosis.
Therefore a comprehensive inspection of the input and output systems, and the TCM is necessary to determine where the malfunction occurs.
1. Disconnect the negative battery cable.
2. Remove the TCM. See: Service and Repair/TCM Removal/Installation - FS5A-EL
3. Connect the TCM connector.
