Power Window Switch: Pinout Values and Diagnostic Parameters

Terminal Voltage Table

POWER WINDOW MAIN SWITCH INSPECTION

With Exterior Open/close Function

Terminal voltage table (reference)

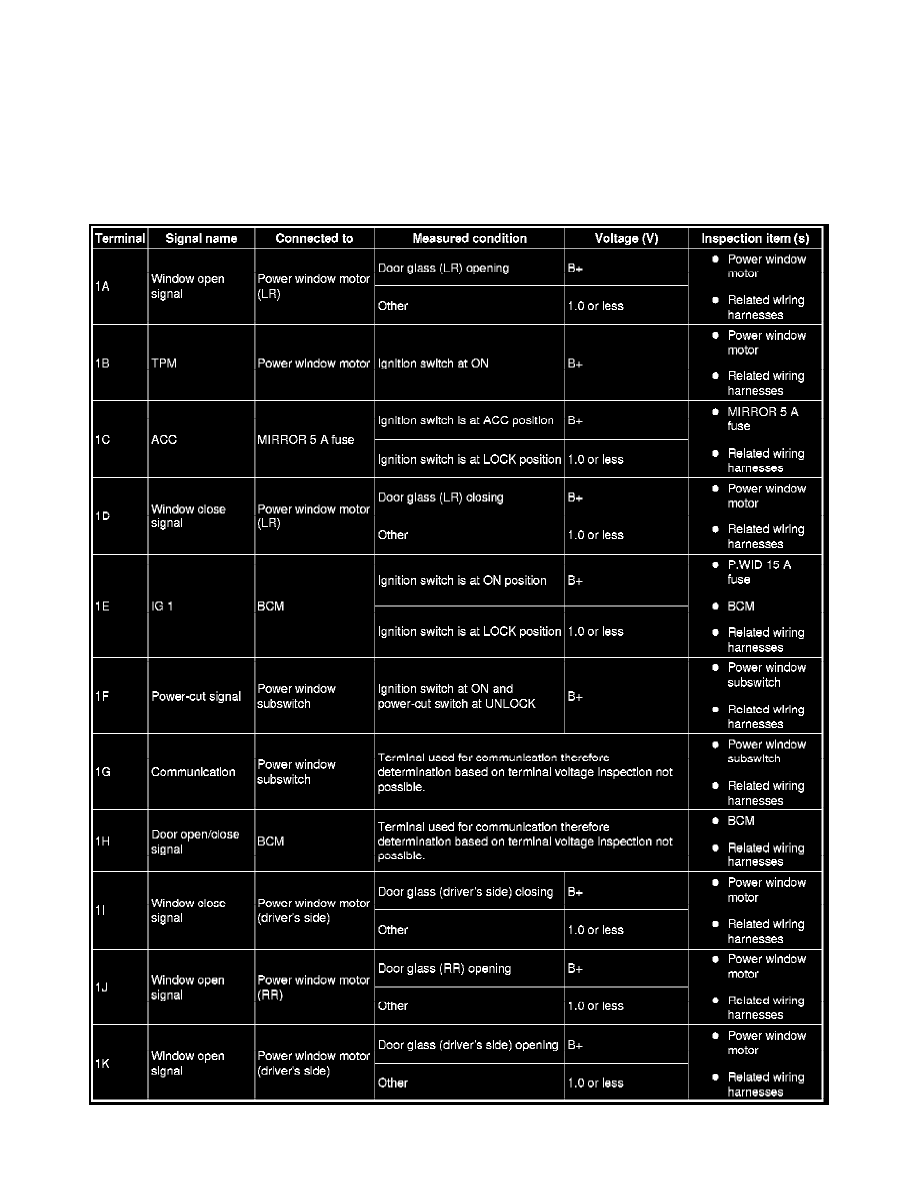

Terminal Voltage Table (Reference) (Part 1)
