6 L4-2.5L (2010)
Windshield Washer Hose: Service and Repair
WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION
1. Remove the front mudguard (RH). See: Body and Frame/Spoilers, Flaps, and Air Dams/Mud Flap/Service and Repair

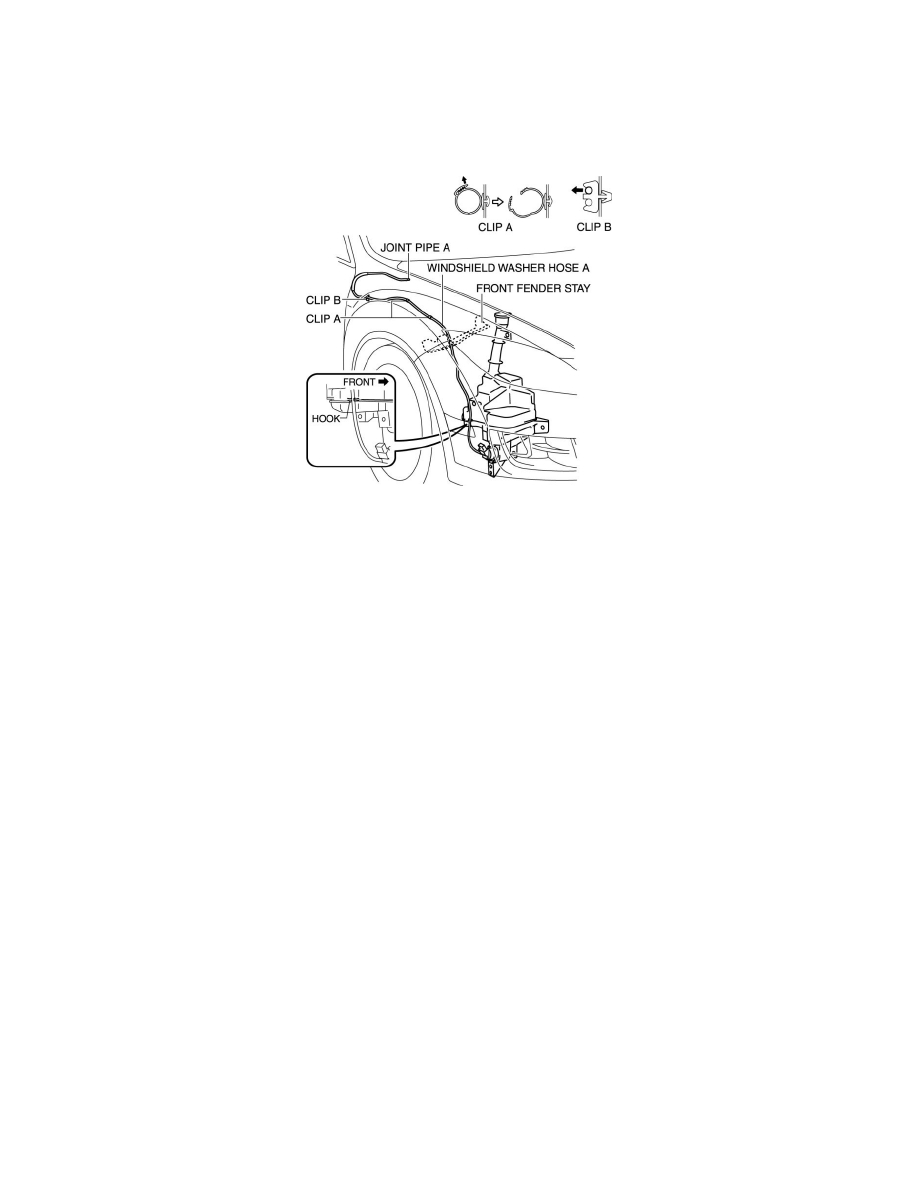

2. Disconnect the windshield washer hose A from the windshield washer motor.
3. Remove the windshield washer hose A from the clip A, B.
4. Disconnect the windshield washer hose from the joint pipe A.
5. Remove the windshield washer hose A.
6. Remove the joint pipe A.
7. Remove the windshield wiper arm and blade. See: Wiper Arm/Service and Repair
8. Remove the cowl grille See: Body and Frame/Cowl/Cowl Moulding / Trim/Service and Repair/Cowl Grille Removal/Installation
9. Disconnect the windshield washer hose B from the check valve.
10. Remove the windshield washer hose B.
11. Remove the check valve.
12. Disconnect windshield washer hose C from the joint pipe B.
13. Remove the windshield washer hose C.
14. Remove the joint pipe B.
15. Disconnect the windshield washer hose E from the windshield washer nozzle (RH).
16. Remove the windshield washer hose D.
17. Remove the windshield washer hose D from the hook.
18. Disconnect the windshield washer hose E from the joint pipe C.
19. Remove the windshield washer hose E.
20. Remove the joint pipe C.
21. Remove the windshield washer hose F from the hook.
