6 V6-3.7L (2009)
Clockspring Assembly / Spiral Cable: Testing and Inspection
CLOCK SPRING INSPECTION
1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. See: Air Bag/Service and Repair/Removal and Replacement/Driver-Side Air Bag Module
Removal/Installation
3. Remove the steering wheel. See: Steering and Suspension/Steering/Steering Column/Service and Repair/Steering Wheel And Column
Removal/Installation [Without Advanced Keyless Entry And Push Button Start System] See: Steering and Suspension/Steering/Steering
Column/Service and Repair/Steering Wheel And Column Removal/Installation [With Advanced Keyless Entry And Push Button Start System]
4. Remove the column cover.
5. Remove the clock spring. See: Service and Repair

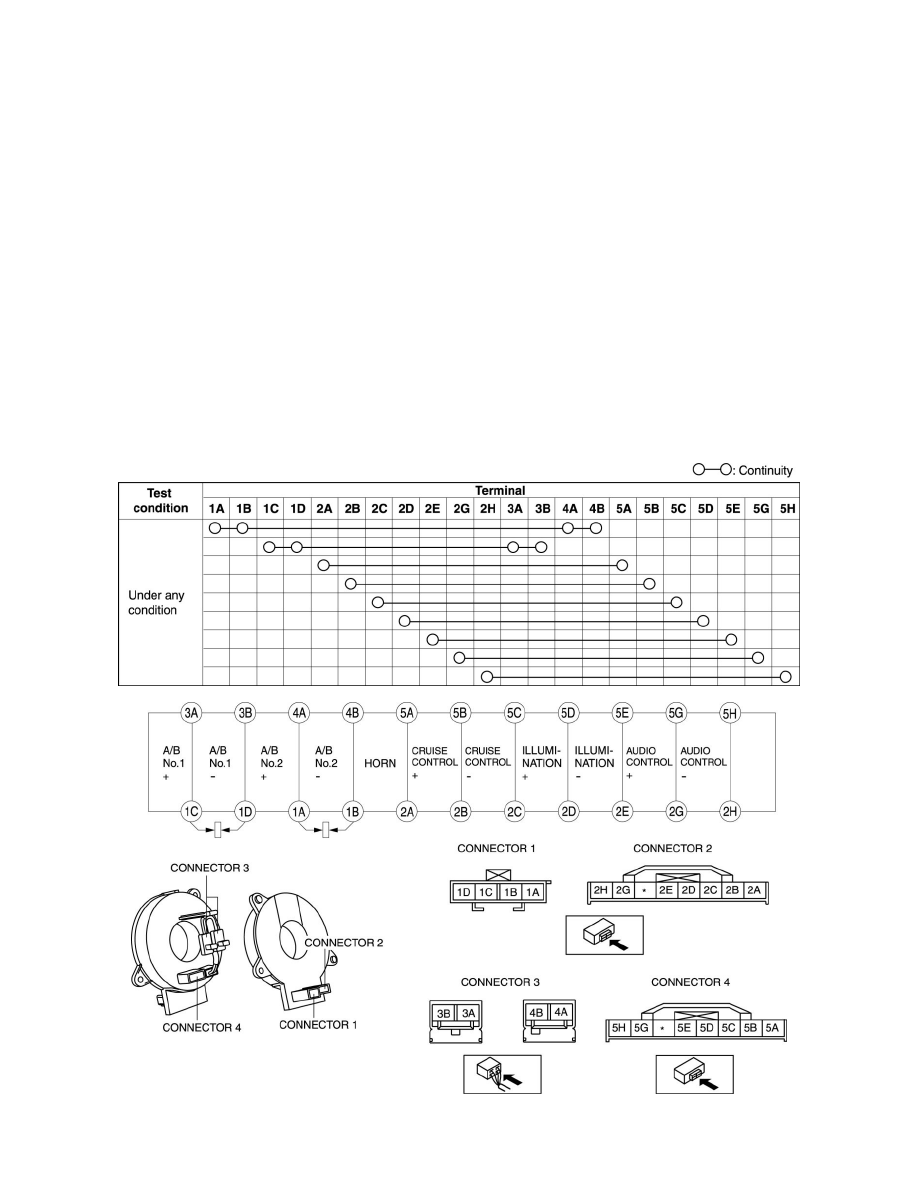

6. Verify that the continuity is as indicated in the table.
-
If not as indicated in the table, replace the clock spring.
NOTE:
-
When the vehicle-side connector for the clock spring is disconnected, terminals 1A, 1B, 1C and 1D are shorted to prevent unexpected
operation (deployment) of the air bag module.
