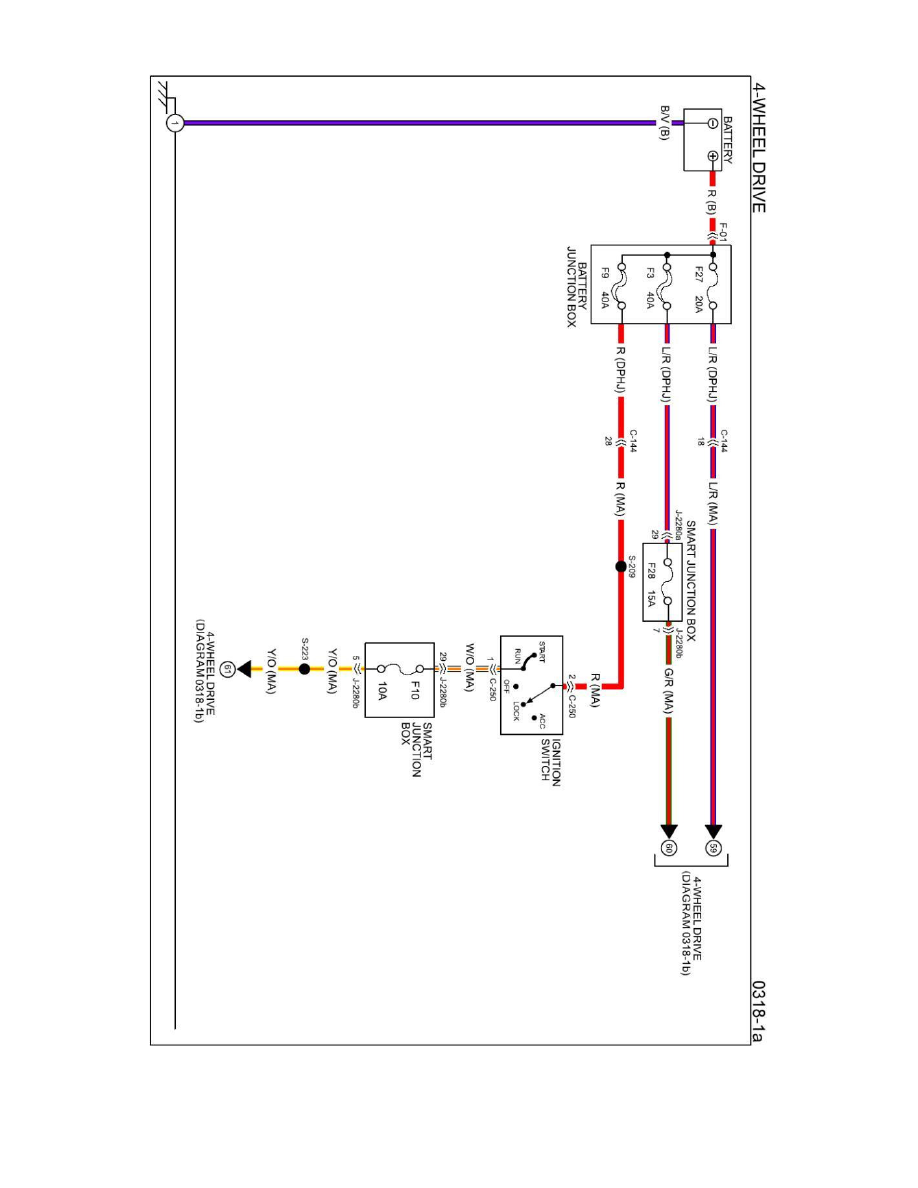

Transfer Case: Diagrams

Diagram 0318-1a

Transmission and Drivetrain
Transfer Case
Component Information
Diagrams
