CX-7 AWD L4-2.3L Turbo (2008)
Knee Diverter: Service and Repair
KNEE BOLSTER REMOVAL/INSTALLATION
1. Remove the following parts:
1. Console panel
2. Console
3. Front scuff plate inner (driver's side)
4. Front side trim (driver's side)
5. Hood release lever
6. Lower panel (driver's side)

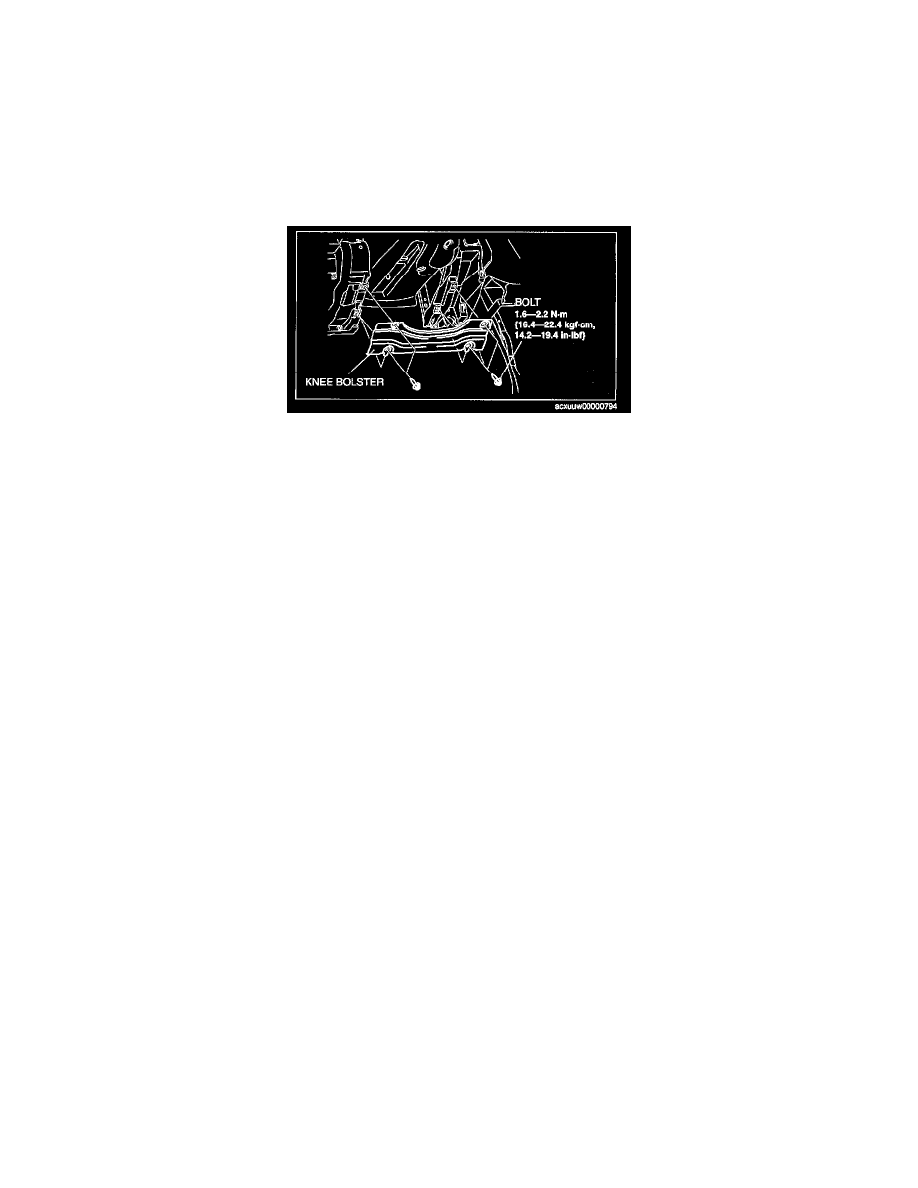

2. Remove the bolts.
3. Remove the knee bolster.
4. Install in the reverse order of removal.
