CX-7 FWD L4-2.3L Turbo (2010)
Compressor Clutch: Testing and Inspection
Magnetic Clutch Inspection - Full-Auto Air Conditioner
MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER]

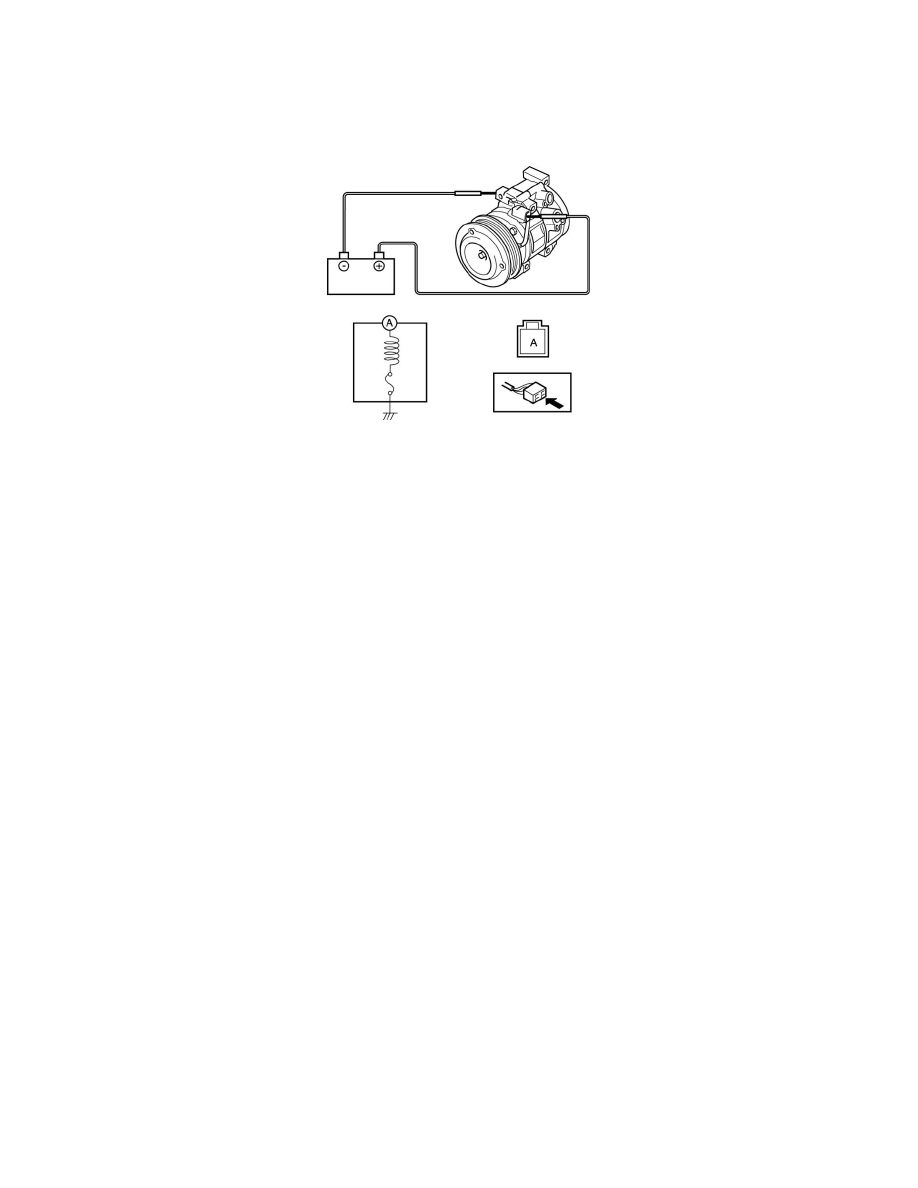

1. Connect battery positive voltage to terminal A of magnetic clutch and ground to A/C compressor body.
2. Verify that the magnetic clutch operates.
-
If there is any malfunction, replace the stator.
