CX-7 FWD L4-2.3L Turbo (2010)
Ball Joint: Specifications

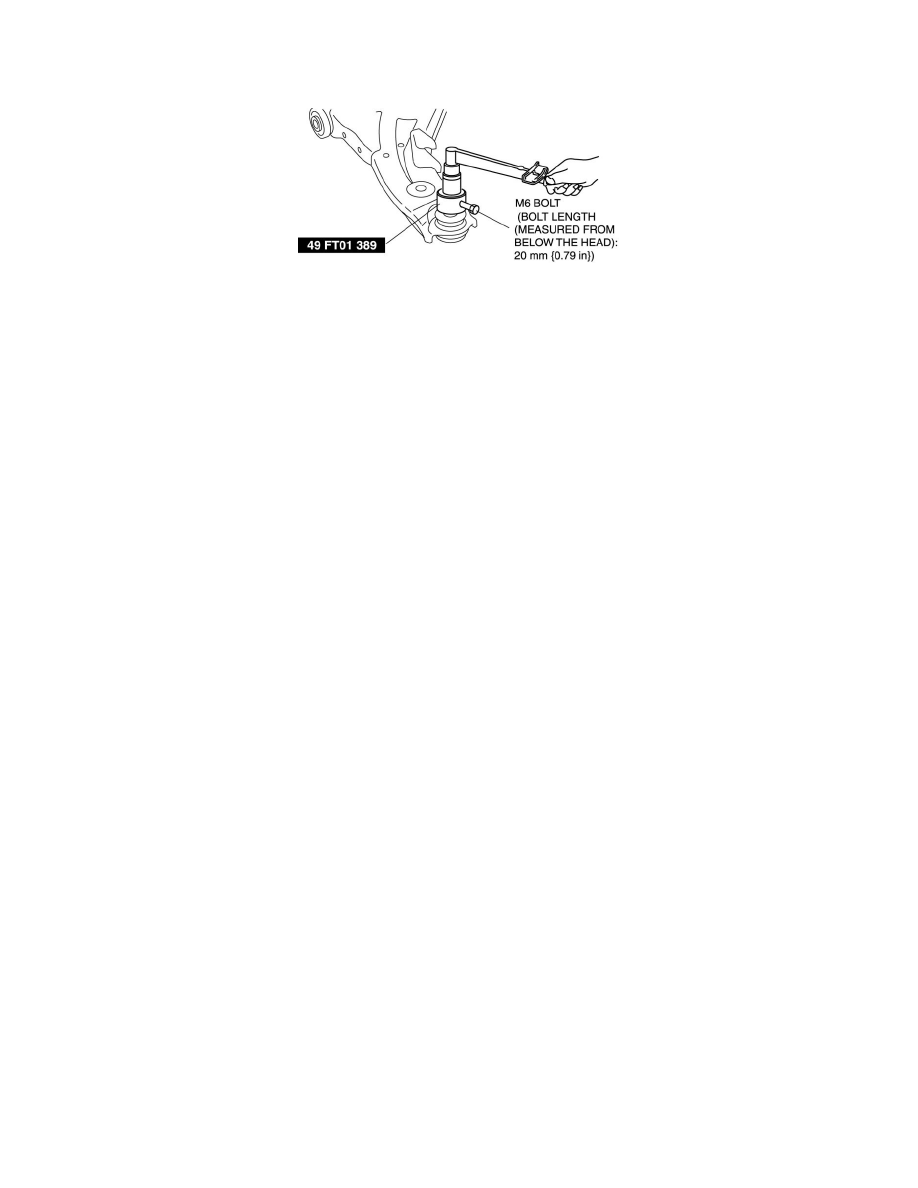

Rotate the ball joint stud 5 times. Install the SST and M6 bolt (bolt length (measured from below the head): 20 mm {0.79 in}) to the ball joint stud,
measure the rotational torque using a torque wrench.
If not within the specification, replace the lower arm.
Front lower arm rotational torque............................................................................................................................1.4-2.0 Nm {15-20 kgf-cm, 13-17 in-lbf}
