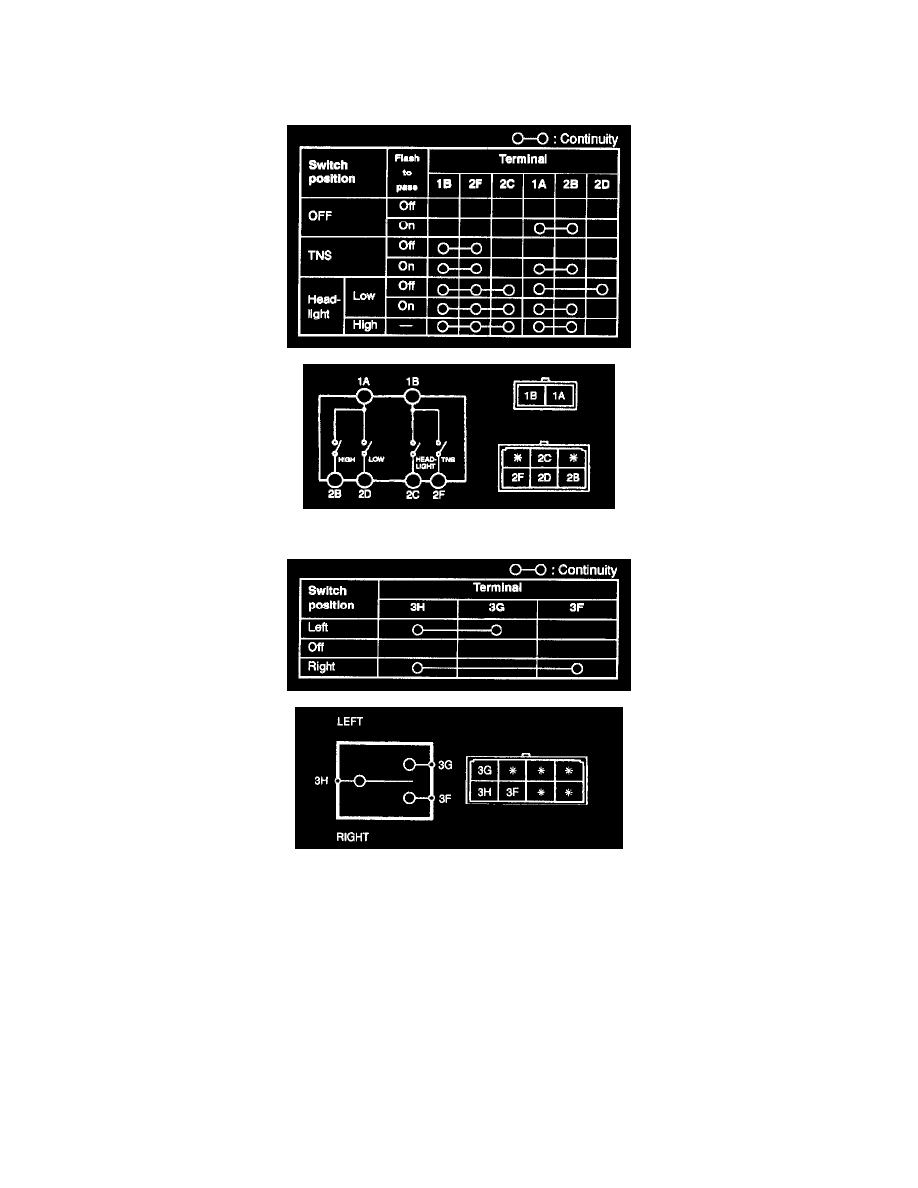

Combination Switch: Testing and Inspection

1. Remove the column cover.
2. Disconnect the combination switch connectors.
3. Check for continuity between the combination switch terminals by using an ohmmeter.

Headlight Switch

Turn Switch
