Power Mirror Switch: Testing and Inspection

1. Remove the power outside mirror switch.

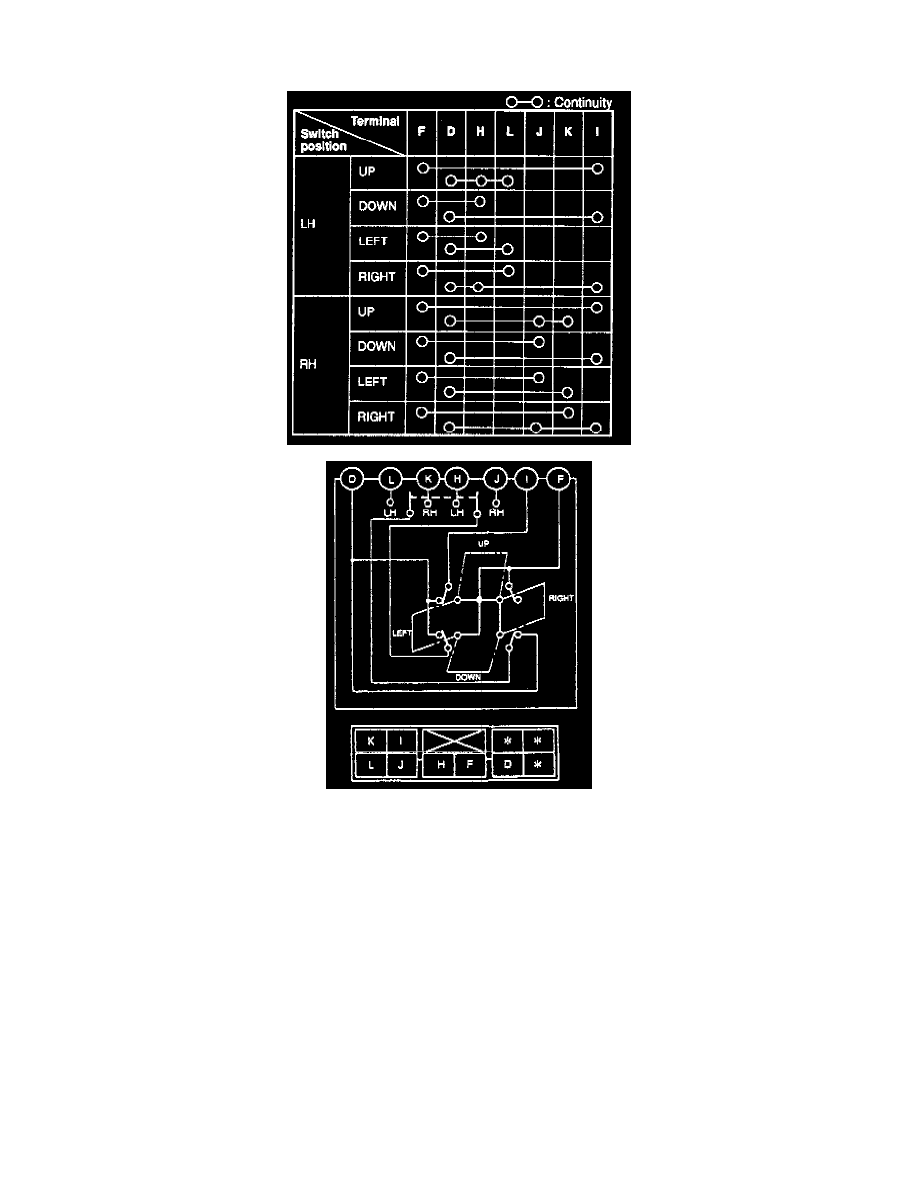

2. Check for continuity between the power outside mirror switch terminals by using an ohmmeter.
3. If not as specified, replace the power outside mirror switch.
